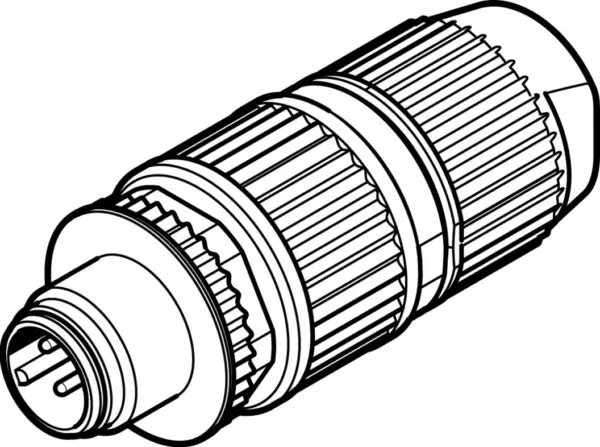

Festo NECU-S-M12G4-HX-Q7
Power supply socket for fieldbus connection , NECU-HX: reconnectable M8 and M12 round plug connector with Harax® quick connection technology for low-voltage applications , Plug and socket for power su…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power supply socket for fieldbus connection , NECU-HX: reconnectable M8 and M12 round plug connector with Harax® quick connection technology for low-voltage applications , Plug and socket for power supply , Can be assembled with any cable lengths
Specification
| Based On Standard |
EN 61076-2-101, EN 61984 |
|---|---|
| Approval |
c UL us – Recognized (OL) |
| Frequency Of Connection |
3 |
| Product Weight |
33.3 g |
| Electrical Connection |
4-pin, A-coded, M12x1, Straight plug/insulation displacement connector |
| Operational Voltage Range Dc |
48 V |
| Operational Voltage Range Ac |
48 V |
| Current Rating At 40° C |
6 A |
| Immunity To Surge |
0.8 kV |
| Permissible Cable Diameter |
4.7, 6 mm |
| Individual Wire Diameter |
0.1 mm |
| Wire Diameter |
1.6, 2 mm |
| Connection Cross Section |
0.34, 0.75 mm² |
| Degree Of Protection |
IP65, IP67 |
| Ambient Temperature |
-25, 85 °C |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Housing |
Die-cast zinc, Nickel-plated |
| Material Screw Type Lock |
Die-cast zinc, nickel-plated |
| Material Seals |
FPM, PUR |
| Material Electrical Contact |
Bronze |
| Permissible Insulating Sheath |
PVC |
