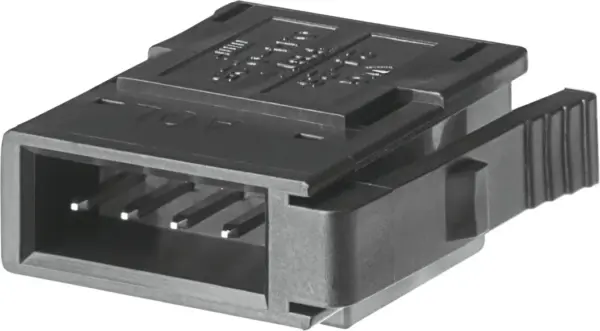

Festo NECU-S-ECG4-HX-Q3
Power supply socket for fieldbus connection , NECU-HX: reconnectable M8 and M12 round plug connector with Harax® quick connection technology for low-voltage applications , Plug and socket for power su…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power supply socket for fieldbus connection , NECU-HX: reconnectable M8 and M12 round plug connector with Harax® quick connection technology for low-voltage applications , Plug and socket for power supply , Can be assembled with any cable lengths
Specification
| Approval |
c UL us – Recognized (OL) |
|---|---|
| Frequency Of Connection |
1 |
| Type Of Mounting |
Snapping in |
| Electrical Connection |
4-pin, Straight plug/insulation displacement connector, Square design |
| Operational Voltage Range Dc |
30 V |
| Current Rating At 40° C |
3 A |
| Immunity To Surge |
0.8 kV |
| Individual Wire Diameter |
0.07 mm |
| Wire Diameter |
0.8, 1 mm |
| Connection Cross Section |
0.14 mm² |
| Degree Of Protection |
IP40 |
| Ambient Temperature |
-20, 60 °C |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
2 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Housing |
PBT, PC |
| Material Electrical Contact |
Bronze |
| Permissible Insulating Sheath |
PP, PVC, TPE-E |
