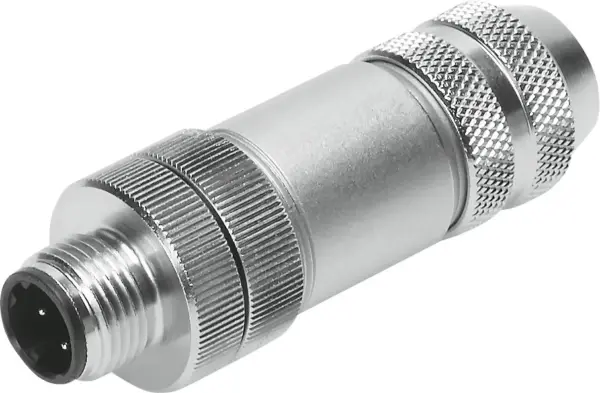

Festo NECU-M-S-D12G4-C2-ET
Power supply socket for fieldbus connection , NECU-HX: reconnectable M8 and M12 round plug connector with Harax® quick connection technology for low-voltage applications , Plug and socket for power su…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power supply socket for fieldbus connection , NECU-HX: reconnectable M8 and M12 round plug connector with Harax® quick connection technology for low-voltage applications , Plug and socket for power supply , Can be assembled with any cable lengths
Specification
| Based On Standard |
EN 61076-2-101, EN 61984 |
|---|---|
| Product Weight |
44.3 g |
| Electrical Connection 1 |
Straight plug connector, M12x1, 4-pin, D-coded, screenable |
| Plug Encoding |
D |
| Electrical Connection 2 |
Screw terminal, can be screened |
| Operational Voltage Range Dc |
250 V |
| Operational Voltage Range Ac |
250 V |
| Immunity To Surge |
2.5 kV |
| Transmission Characteristics |
DIN EN 50173/CAT 5 |
| Permissible Cable Diameter |
6, 8 mm |
| Connection Cross Section |
0.14, 0.75 mm² |
| Degree Of Protection |
IP67 |
| Ambient Temperature |
-25, 85 °C |
| Ce Mark (See Declaration Of Conformity) |
To EU Low Voltage Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK regulations for electrical equipment |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Housing |
Die-cast zinc, nickel-plated |
| Material Electrical Contact |
Gold-plated brass |
