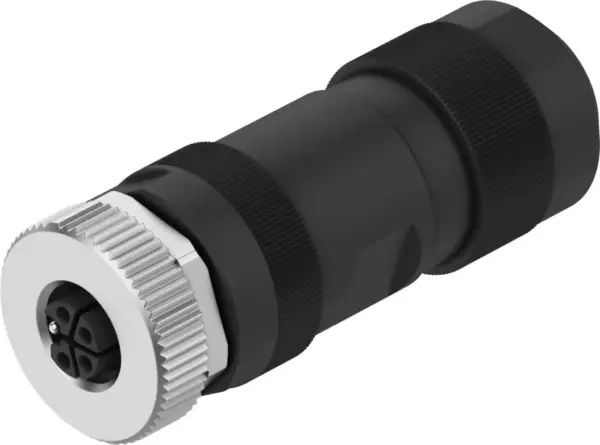

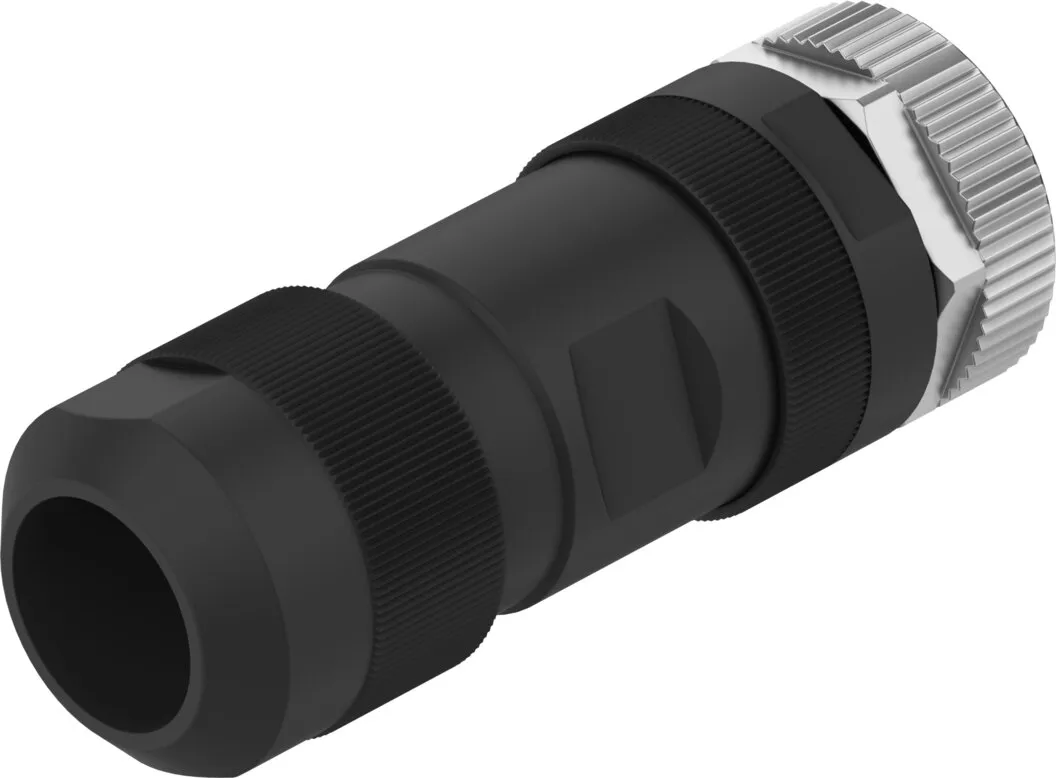

Festo NECL-L12G5-C2-Q10
Power supply socket, power supply plug , Straight or angled design , For thread M12x1, L-coded to EN 61076-2-111 , For cable diameter 8 … 13 mm
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power supply socket, power supply plug , Straight or angled design , For thread M12x1, L-coded to EN 61076-2-111 , For cable diameter 8 … 13 mm
Specification
| Based On Standard |
EN 61076-2-111 |
|---|---|
| Approval |
c UL us – Recognized (OL) |
| Certificate Issuing Authority |
UL E474609 |
| Type Of Mounting |
Threaded |
| Cable Outlet |
Straight |
| Product Weight |
50.37 g |
| Electrical Connection 1, Function |
Power supply |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Connector System |
M12x1 L-coded to EN 61076-2-111 |
| Electrical Connection 1, Number Of Connections/Cores |
5 |
| Electrical Connection 1, Connection Pattern |
00995939 |
| Electrical Connection 2, Connector System |
Screw terminal |
| Operational Voltage Range Dc |
63 V |
| Nominal Operating Voltage Dc |
63 V |
| Current Rating At 40° C |
16 A |
| Immunity To Surge |
1.5 kV |
| Permissible Cable Diameter |
8 – 13 mm for electrical connection 1 |
| Nominal Cross Section Conductor |
2.5 mm² |
| Conductor Nominal Cross Section |
AWG14 |
| Note On Connection Cross Section |
Max. 1.5 mm²/AWG16 when using wire ferrule |
| Degree Of Protection |
IP65, IP67 |
| Ambient Temperature |
-40, 105 °C |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Housing |
PA |
| Material Screw Type Lock |
Die-cast zinc, nickel-plated |
| Material Electrical Contact |
Gold-plated copper alloy |
