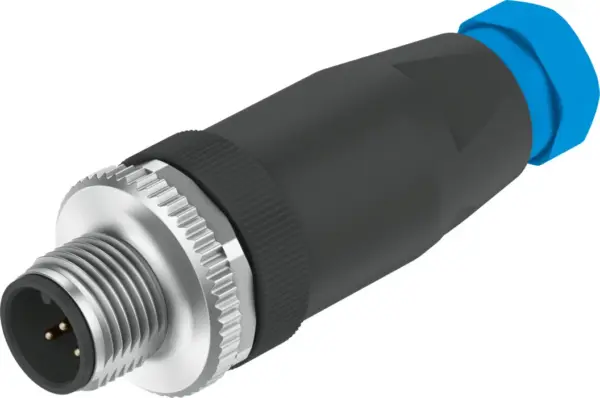

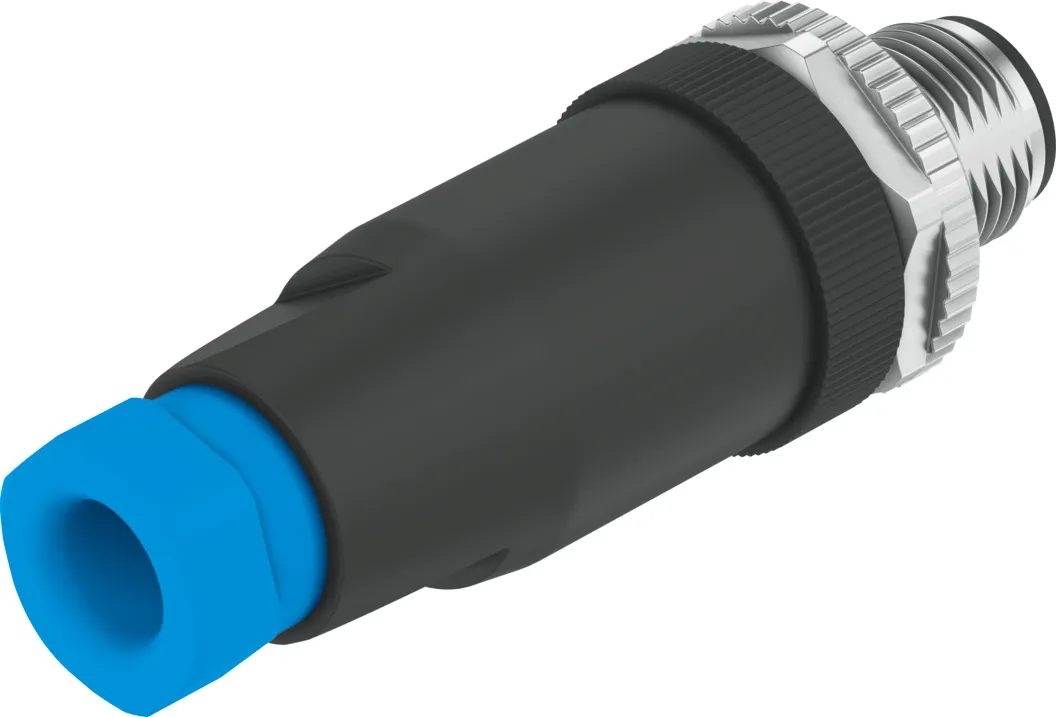

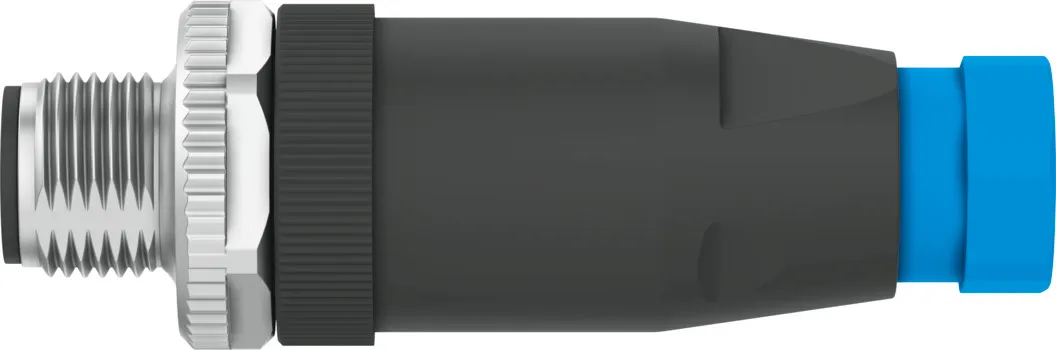

Festo NECB-S-M12G5-C2
Plug connectors for many cable diameters and wire cross-sections , Screw terminals with a wide range of nominal cross sections up to 0.75 mm , UL certified , Tested in accordance with IEC 61010-1 and…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plug connectors for many cable diameters and wire cross-sections , Screw terminals with a wide range of nominal cross sections up to 0.75 mm , UL certified , Tested in accordance with IEC 61010-1 and IEC 61010- 2-202 for Festo valves , Degree of protection: IP65 and IP67 , Better seals (FPM) , Extended temperature range: -25 … +90 °C
Specification
| Conforms To Standard | EN 61076-2-101 |
|---|---|
| Approval | c UL us listed (OL) |
| Certificate Issuing Authority | UL E474609 |
| Frequency Of Connection | 100 |
| Cable Outlet | Straight |
| Product Weight | 19 g |
| Instructions On Use | Only energy-limited circuits with a maximum current of 4 A at a max. open circuit voltage of 30 V DC are permissible for supplying electrically actuated valves from Festo. |
| Electrical Connection 1, Function | Controller side |
| Electrical Connection 1, Design | Round |
| Electrical Connection 1, Connection Type | Plugs |
| Electrical Connection 1, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores | 5 |
| Electrical Connection 1, Used Connections/Cores | 5 |
| Electrical Connection 1, Type Of Mounting | Screw-type lock with 18 mm hexagon and longitudinal knurl, Rotatable |
| Electrical Connection 1, Compatible Type Of Mounting | Compatible with rotatable/non-rotatable screw-type lock |
| Electrical Connection 1, Connection Pattern | 00995383 |
| Electrical Connection 2, Function | Field device side |
| Electrical Connection 2, Connection Type | Cable |
| Electrical Connection 2, Connector System | Screw terminal |
| Electrical Connection 2, Number Of Connections/Cores | 5 |
| Electrical Connection 2, Used Connections/Cores | 5 |
| Operational Voltage Range Dc | 60 V |
| Operational Voltage Range Ac | 48 V |
| Current Rating At 40° C | 4 A |
| Immunity To Surge | 1.5 kV |
| Protective Conductor Connection | Not available |
| Cable Fitting | Pg7 |
| Cable Diameter | 2.1, 7 mm |
| Connection Cross Section | 0.14, 0.75 mm² |
| Note On Connection Cross Section | 0.1 mm² with wire ferrule |
| Degree Of Protection | IP65, IP67 |
| Note On Degree Of Protection | In assembled state |
| Ambient Temperature | -25, 90 °C |
| Note On Ambient Temperature | Note derating |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Note On Materials | RoHS-compliant |
| Pollution Degree | 3 |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Material Housing | PA66-GF30 |
| Housing Colour | Black |
| Material Screw Type Lock | Die-cast zinc, nickel-plated |
| Material Screws | Nickel-plated steel |
| Material Seals | FPM |
| Material Electrical Contact | Brass, nickel-plated and gold-plated |
