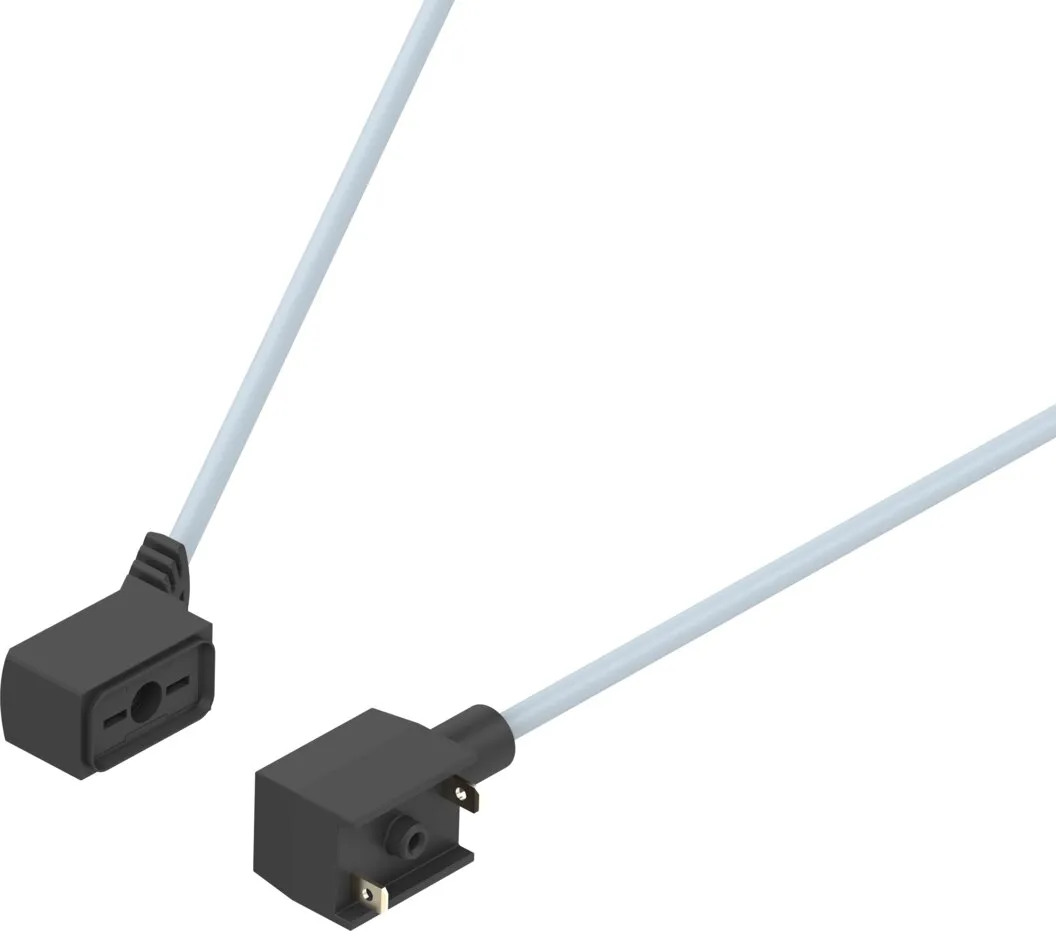

Festo NEBV-Z4WA2L-R-E-0.2-N-Z1W2-S1
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends ,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends , Cable length 0.1 … 30 m , With PUR cable , Ambient temperature -25 … +80 °C
Specification
| Signal Status Display |
Yellow LED |
|---|---|
| Additional Functions |
Holding current reduction, Protective circuit |
| Cable Designation |
Without inscription label holder |
| Frequency Of Connection |
50 |
| Product Weight |
18 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Angled |
| Electrical Connection 1, Connector System |
Plug pattern ZC, metric screw |
| Electrical Connection 1, Number Of Connections/Cores |
2 |
| Electrical Connection 1, Used Connections/Cores |
2 |
| Electrical Connection 1, Type Of Mounting |
On solenoid valve via M2 central screw |
| Electrical Connection 1, Connection Pattern |
00995625 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Angular |
| Electrical Connection 2, Connection Type |
Plugs |
| Electrical Connection 2, Cable Outlet |
Angled |
| Electrical Connection 2, Connector System |
Connection pattern ZB, self-tapping screw |
| Electrical Connection 2, Number Of Connections/Cores |
2 |
| Electrical Connection 2, Used Connections/Cores |
2 |
| Electrical Connection 2, Type Of Mounting |
On solenoid valve via self-tapping screw |
| Electrical Connection 2, Connection Pattern |
00995712 |
| Operational Voltage Range Dc |
20.4, 26.4 V |
| Nominal Operating Voltage Dc |
24 V |
| Immunity To Surge |
2.4 kV |
| Reverse Polarity Protection |
Bipolar |
| Protective Conductor Connection |
Not available |
| Cable Length |
0.2 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Moving Cable |
29 mm |
| Cable Diameter |
2.9 mm |
| Cable Diameter Tolerance |
± 0.1 mm |
| Cable Structure |
2 x 0.14 mm² |
| Nominal Cross Section Conductor |
0.14 mm² |
| Degree Of Protection |
IP65 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-10, 50 °C |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Note On The Contamination Level |
In mounted state |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Housing |
TPE-U(PU) |
| Housing Colour |
Black |
| Material Screws |
Stainless steel |
| Material Electrical Contact |
Copper alloy, tin-plated |
| Material Insulating Sheath |
PP |
