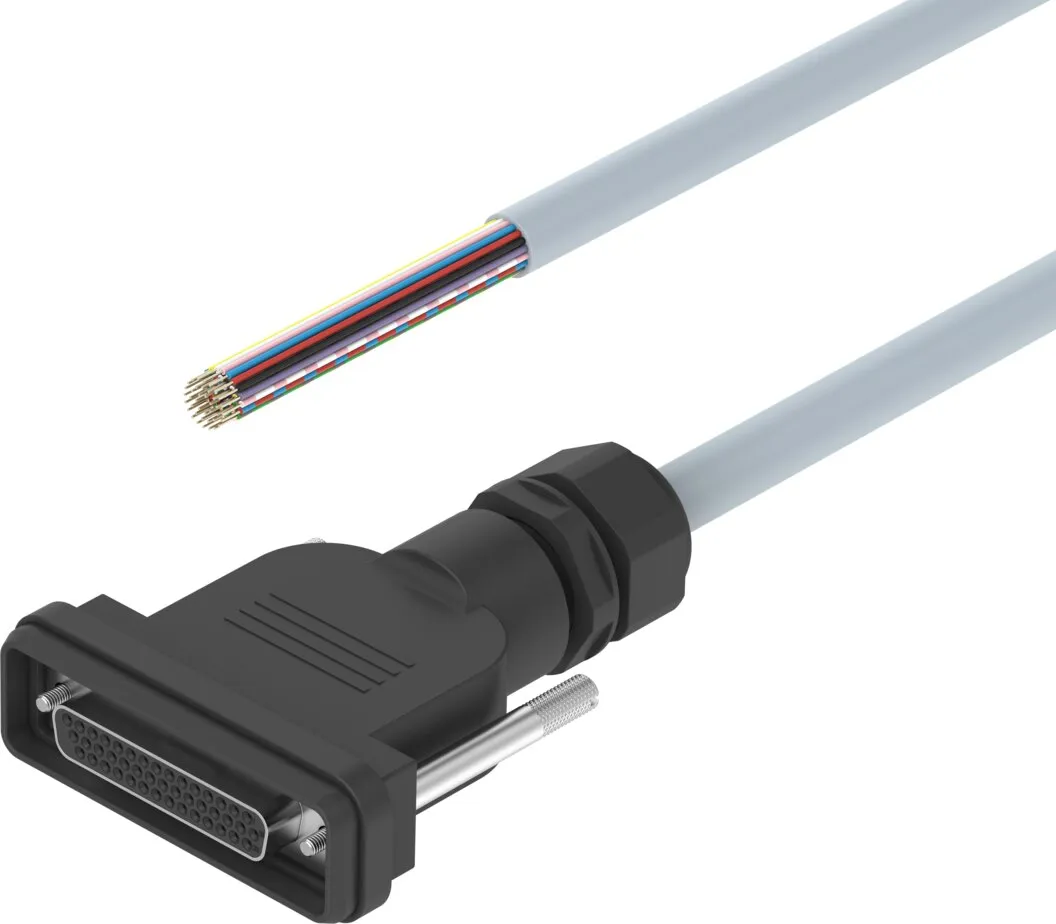

Festo NEBV-S1G44-K-10-N-LE39
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends ,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends , Cable length 0.1 … 30 m , With PUR cable , Ambient temperature -25 … +80 °C
Specification
| Type Of Mounting |
4-40UNC |
|---|---|
| Mounting Position |
optional |
| Product Weight |
1432 g |
| Electrical Connection |
44-pin, Socket, Sub-D |
| Operational Voltage Range Dc |
30 V |
| Current Rating At 40° C |
0.86 A |
| Cable Length |
10 m |
| Cable Characteristic |
For static applications |
| Min. Cable Bending Radius |
95 mm |
| Cable Diameter |
9.6 mm |
| Cable Diameter Tolerance |
± 0.5 mm |
| Cable Structure |
40 x 0.14 mm² |
| Degree Of Protection |
IP65, IP67, In assembled state |
| Ambient Temperature |
-5, 60 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Material Cable Sheath |
PVC |
| Material Housing |
PBT |
| Material Electrical Contact |
Bronze, Bronze |
