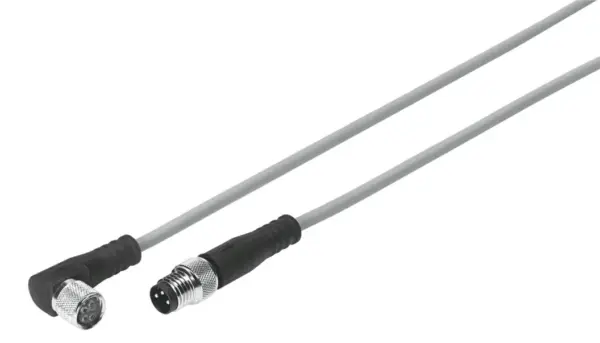

Festo NEBV-M8W4L-E-5-M8G3
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends ,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends , Cable length 0.1 … 30 m , With PUR cable , Ambient temperature -25 … +80 °C
Specification
| Conforms To Standard |
ISO 20401 |
|---|---|
| Switching Status Indication |
Yellow LED |
| Product Weight |
90 g |
| Electrical Connection |
4-pin/3-pin, Angled socket/straight plug, M8x1/M8x1 |
| Operational Voltage Range Dc |
20.4, 26.4 V |
| Current Rating At 40° C |
3 A |
| Cable Length |
5 m |
| Cable Characteristic |
Suitable for energy chains |
| Min. Cable Bending Radius |
35 mm |
| Cable Diameter |
3.3 mm |
| Cable Structure |
2 x 0.25 mm² |
| Degree Of Protection |
IP65, IP67 |
| Ambient Temperature |
-10, 50 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Material Housing |
TPE-U(PU) |
| Material Electrical Contact |
Brass, Bronze |
| Material Insulating Sheath |
PVC |
