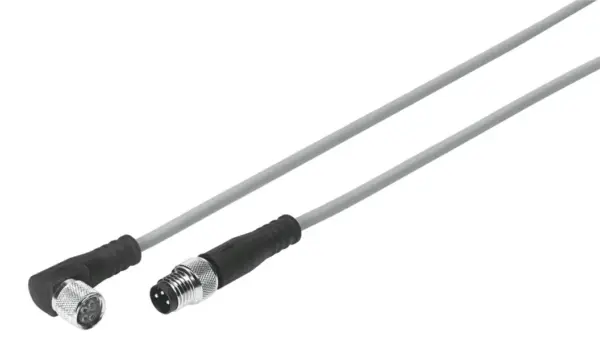

Festo NEBV-M8W4L-E-10-M8G3
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends ,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends , Cable length 0.1 … 30 m , With PUR cable , Ambient temperature -25 … +80 °C
Specification
| Conforms To Standard | ISO 20401 |
|---|---|
| Switching Status Indication | Yellow LED |
| Product Weight | 170 g |
| Electrical Connection | 4-pin/3-pin, Angled socket/straight plug, M8x1/M8x1 |
| Operational Voltage Range Dc | 20.4, 26.4 V |
| Current Rating At 40° C | 3 A |
| Cable Length | 10 m |
| Cable Characteristic | Suitable for energy chains |
| Min. Cable Bending Radius | 35 mm |
| Cable Diameter | 3.3 mm |
| Cable Structure | 2 x 0.25 mm² |
| Degree Of Protection | IP65, IP67 |
| Ambient Temperature | -10, 50 °C |
| Ce Mark (See Declaration Of Conformity) | In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Note On Materials | RoHS-compliant |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Material Cable Sheath | TPE-U(PUR) |
| Material Housing | TPE-U(PU) |
| Material Electrical Contact | Brass, Bronze |
| Material Insulating Sheath | PVC |
