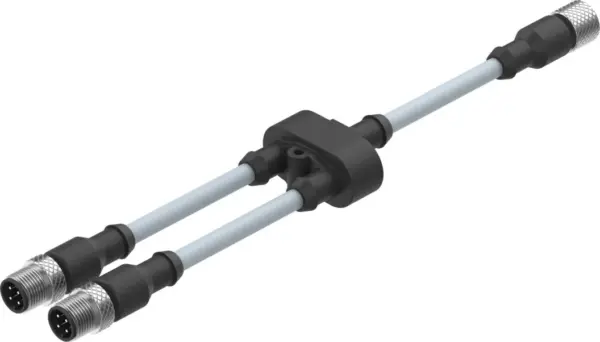

Festo NEBV-M12G8-KD-3-M12G4
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends ,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends , Cable length 0.1 … 30 m , With PUR cable , Ambient temperature -25 … +80 °C
Specification
| Conforms To Standard | DIN 47100, EN 61076-2-101 |
|---|---|

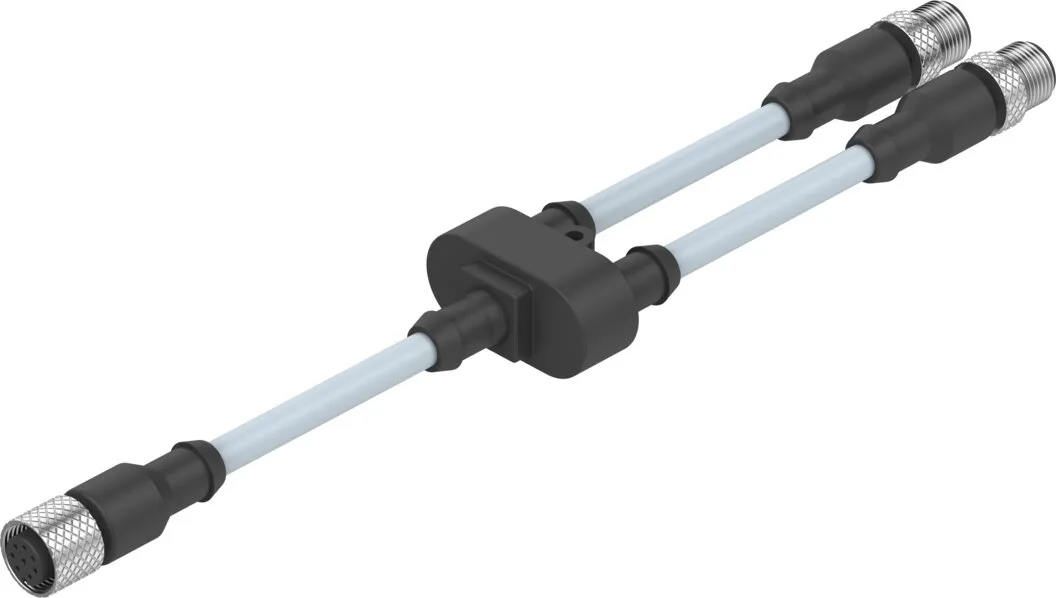

| Design | Y-distributor with cables on both sides |
| Distrubution | 1 to 2 |
| Additional Functions | Distribution of the analogue inputs and outputs of a proportional pressure regulator |
| Cable Designation | Without inscription label holder |
| Type Of Mounting | Via through-hole for M3 screw |
| Electrical Connection 1, Function | Field device side |
| Electrical Connection 1, Design | Round |
| Electrical Connection 1, Connection Type | Socket |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores | 8 |
| Electrical Connection 1, Used Connections/Cores | 5 |
| Electrical Connection 1, Type Of Mounting | Screw-type lock |
| Electrical Connection 1, Connection Pattern | 00992265 |
| Electrical Connection 2, Function | Controller side |
| Electrical Connection 2, Design | Round |
| Electrical Connection 2, Connection Type | Plugs |
| Electrical Connection 2, Cable Outlet | Straight |
| Electrical Connection 2, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 2, Number Of Connections/Cores | 4 |
| Electrical Connection 2, Used Connections/Cores | 4 |
| Electrical Connection 2, Type Of Mounting | Screw-type lock |
| Electrical Connection 2, Connection Pattern | 00995386 |
| Electrical Connection 3, Function | Controller side |
| Electrical Connection 3, Design | Round |
| Electrical Connection 3, Connection Type | Plugs |
| Electrical Connection 3, Cable Outlet | Straight |
| Electrical Connection 3, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 3, Number Of Connections/Cores | 4 |
| Electrical Connection 3, Used Connections/Cores | 3 |
| Electrical Connection 3, Type Of Mounting | Screw-type lock |
| Electrical Connection 3, Connection Pattern | 00995635 |
| Operational Voltage Range Dc | 30 V |
| Operational Voltage Range Ac | 30 V |
| Current Rating At 40° C | 2 A |
| Immunity To Surge | 0.8 kV |
| Shielding | yes |
| Cable Length 1 | 2.5 m |
| Cable Length 2 | 0.5 m |
| Cable Characteristic | Standard |
| Bending Radius 1, Fixed Cable Installation | 33 mm |
| Min. Bending Radius With Free Moving Insert 1 | 66 mm |
| Bending Radius 2, Fixed Cable Installation | 33 mm |
| Min. Bending Radius With Free Moving Insert 2 | 66 mm |
| Cable Diameter 1 | 6.3 mm |
| Tolerance For Cable Diameter 1 | ± 0.2 mm |
| Cable Diameter 2 | 6.3 mm |
| Tolerance For Cable Diameter 2 | ± 0.2 mm |
| Cable Structure | 8 x 0.25 mm² |
| Nominal Cross Section Conductor | 0.25 mm² |
| Degree Of Protection | IP67 |
| Note On Degree Of Protection | In assembled state |
| Ambient Temperature | -25, 80 °C |
| Ambient Temperature With Moving Cable | -5, 80 °C |
| Ce Mark (See Declaration Of Conformity) | In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Note On Materials | RoHS-compliant, Free of halogen |
| Pollution Degree | 3 |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Material Cable Sheath | TPE-U(PUR) |
| Cable Sheath Colour | Grey |
| Material Housing | TPE-U(PUR) |
| Housing Colour | Black |
| Material Screw Type Lock | Nickel-plated brass |
| Material Seals | NBR |
| Material Electrical Contact | Brass, nickel-plated and gold-plated |
| Material Insulating Sheath | PP |
