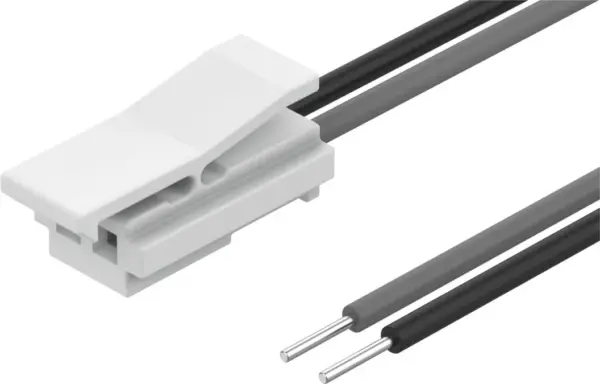

Festo NEBV-HPG2-PN-0.3-N-LE2
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends ,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends , Cable length 0.1 … 30 m , With PUR cable , Ambient temperature -25 … +80 °C
Specification
| Max. Number Of Valve Coils |
1 |
|---|---|
| Cable Designation |
Without inscription label holder |
| Mounting Position |
optional |
| Product Weight |
2 g |
| Electrical Connection 1, Function |
Field device side, Switching output |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Cable with socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
Connection pattern HP |
| Electrical Connection 1, Number Of Connections/Cores |
2 |
| Electrical Connection 1, Used Connections/Cores |
2 |
| Electrical Connection 1, Type Of Mounting |
Push-pull with interlock against unintentional pulling |
| Electrical Connection 2, Function |
Power supply, Controller side |
| Electrical Connection 2, Connection Type |
2x single wires |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
2 |
| Electrical Connection 2, Used Connections/Cores |
2 |
| Operational Voltage Range Dc |
24 V |
| Shielding |
no |
| Note On Operation |
Only operate with external power reduction |
| Cable Length |
0.3 m |
| Cable Characteristic |
For static applications |
| Bending Radius, Fixed Cable |
11 mm |
| Cable Diameter |
0.96 mm |
| Degree Of Protection |
IP40 |
| Ambient Temperature |
50 °C |
| Storage Temperature |
-20, 70 °C |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Material Housing |
PEEK |
| Housing Colour |
grey |
| Material Insulating Sheath |
PVC |
