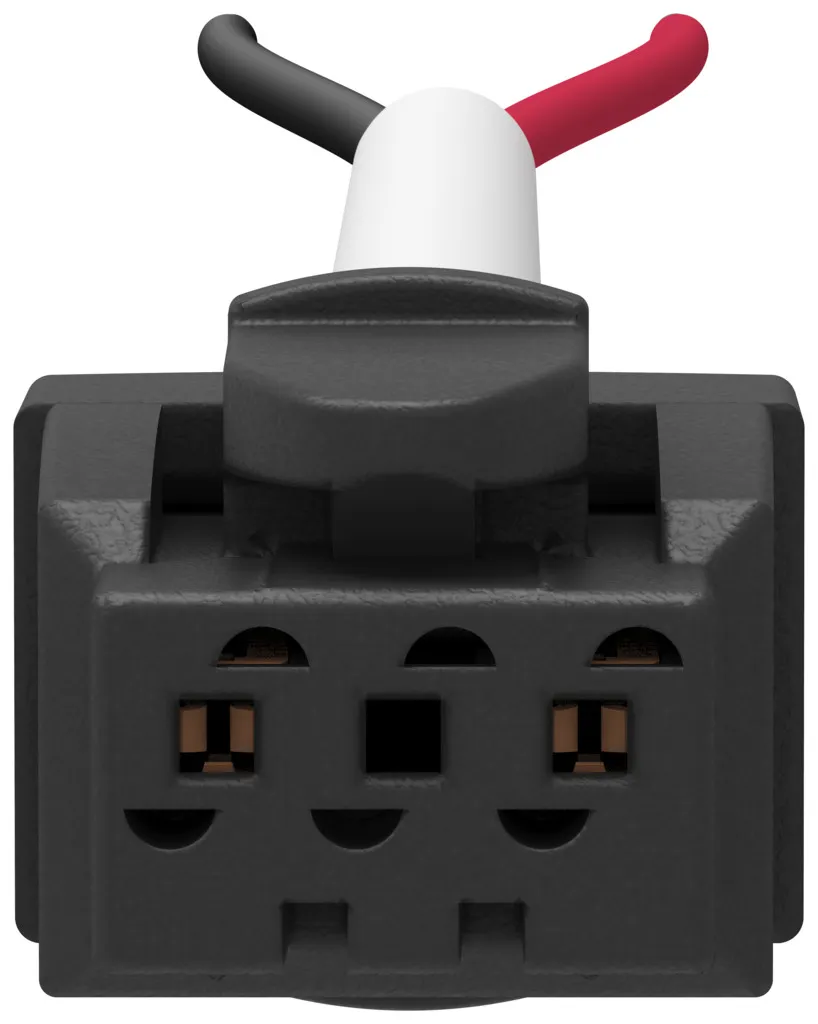

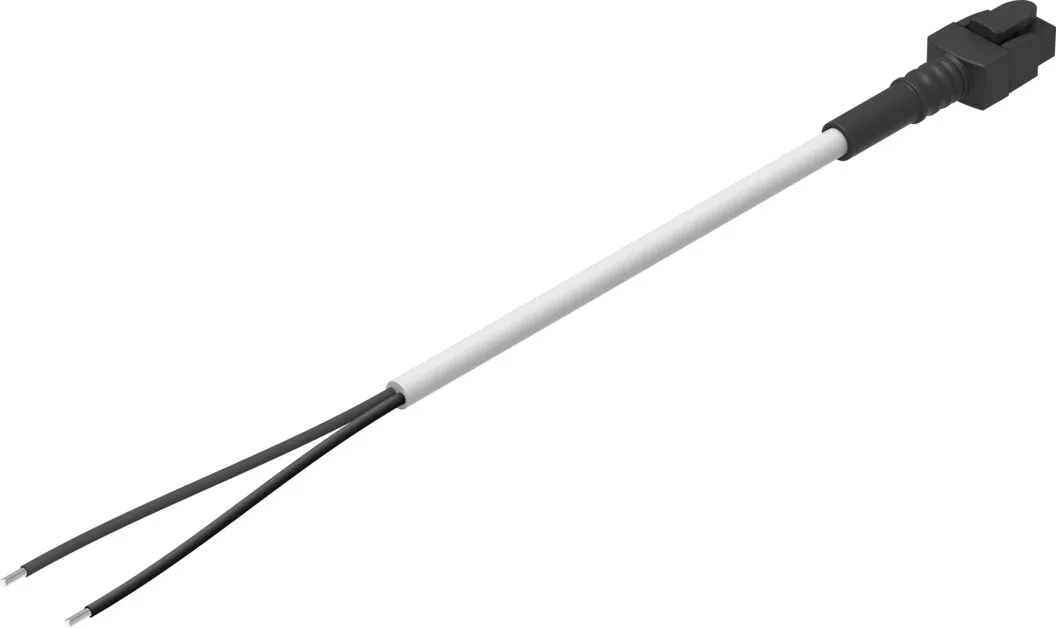

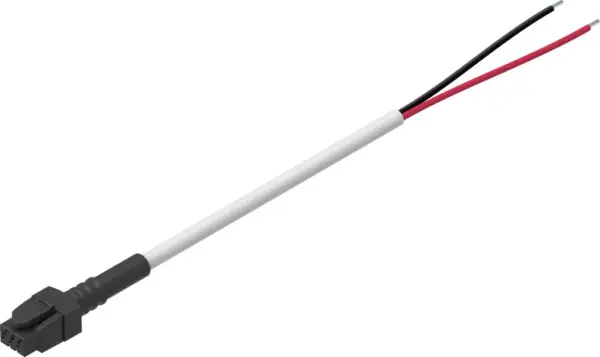

Festo NEBV-H1G2-P-2.5-N-LE2
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends ,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends , Cable length 0.1 … 30 m , With PUR cable , Ambient temperature -25 … +80 °C
Specification
| Cable Designation |
Without inscription label holder |
|---|---|
| Mounting Position |
optional |
| Product Weight |
35 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
Connection pattern H |
| Electrical Connection 1, Number Of Connections/Cores |
3 |
| Electrical Connection 1, Used Connections/Cores |
2 |
| Electrical Connection 1, Type Of Mounting |
Snap-locking |
| Electrical Connection 1, Connection Pattern |
00995622 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
2 |
| Electrical Connection 2, Used Connections/Cores |
2 |
| Operational Voltage Range Dc |
60 V |
| Current Rating At 40° C |
3 A |
| Cable Length |
2.5 m |
| Cable Characteristic |
For static applications |
| Cable Diameter |
3.4 mm |
| Cable Structure |
2 x 0.14 mm² |
| Nominal Cross Section Conductor |
0.14 mm² |
| Wire Ends |
Sheath removed, Cut off bluntly |
| Degree Of Protection |
IP40 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-5, 60 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Housing |
POM |
| Housing Colour |
Black |
| Material Electrical Contact |
Copper alloy, Tin-plated |
| Material Insulating Sheath |
PVC |
