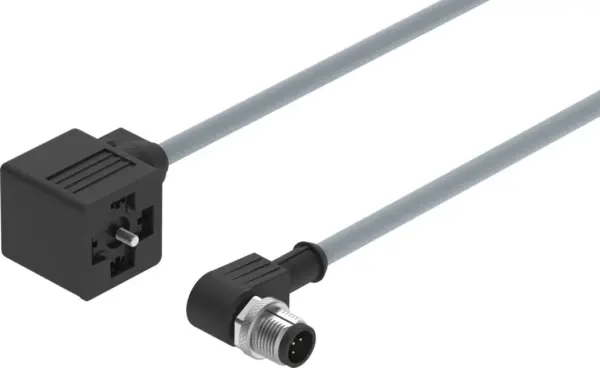

Festo NEBV-A1W3F-P-K-0.6-N-M12W3
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends ,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils form A, form B or form C , For solenoid coils with thread M8x1 or M12x1 A-coded , For solenoid coils ZC or various special connection patterns , Pre-assembled at one or both ends , Cable length 0.1 … 30 m , With PUR cable , Ambient temperature -25 … +80 °C
Specification
| Approval | c CSA us (OL) |
|---|---|
| Switching Status Indication | Yellow LED |
| Additional Functions | Protective circuit |
| Cable Designation | Without inscription label holder |
| Product Weight | 100 g |
| Electrical Connection 1, Function | Field device side |
| Electrical Connection 1, Design | Angular |
| Electrical Connection 1, Connection Type | Socket |
| Electrical Connection 1, Cable Outlet | Angled |
| Electrical Connection 1, Connector System | Connection pattern type A based on EN 175301-803 |
| Electrical Connection 1, Number Of Connections/Cores | 4 |
| Electrical Connection 1, Used Connections/Cores | 4 |
| Electrical Connection 1, Type Of Mounting | On solenoid valve via M3 central screw |
| Electrical Connection 1, Connection Pattern | 00995710 |
| Electrical Connection 2, Function | Controller side |
| Electrical Connection 2, Design | Round |
| Electrical Connection 2, Connection Type | Plugs |
| Electrical Connection 2, Cable Outlet | Angled |
| Electrical Connection 2, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 2, Number Of Connections/Cores | 5 |
| Electrical Connection 2, Used Connections/Cores | 3 |
| Electrical Connection 2, Type Of Mounting | Screw lock with hex A/F13 |
| Electrical Connection 2, Connection Pattern | 00995711 |
| Operational Voltage Range Dc | 18, 30 V |
| Nominal Operating Voltage Dc | 24 V |
| Operational Voltage Range Ac | 18, 30 V |
| Nominal Operating Voltage Ac | 24 V |
| Current Rating At 40° C | 4 A |
| Immunity To Surge | 0.8 kV |
| Protective Conductor Connection | Available |
| Cable Length | 0.6 m |
| Cable Characteristic | Standard |
| Test Conditions Cable | Test conditions on request |
| Cable Diameter | 5.9 mm |
| Cable Diameter Tolerance | ± 0.3 mm |
| Cable Structure | 3 x 0.75 mm² |
| Degree Of Protection | IP67 |
| Note On Degree Of Protection | In assembled state |
| Ambient Temperature | -25, 80 °C |
| Ambient Temperature With Moving Cable | -25, 80 °C |
| Ce Mark (See Declaration Of Conformity) | In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Note On Materials | RoHS-compliant |
| Pollution Degree | 3 |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Material Cable Sheath | TPE-U(PUR) |
| Cable Sheath Colour | Grey |
| Material Housing | TPE-U(PUR) |
| Housing Colour | Black |
| Material Union Nut | Die-cast zinc, Nickel-plated |
| Material Insulating Sheath | PP |
