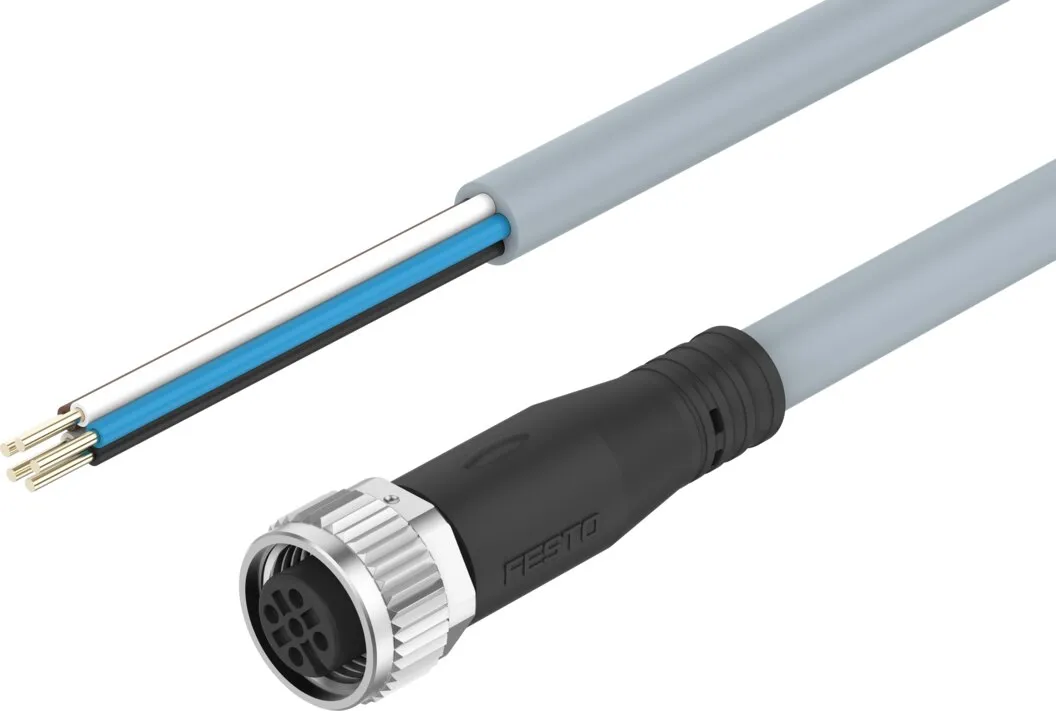

Festo NEBU-M12G5-E-10-Q8N-LE5
Connecting cables with 5-pin plug/socket M12x1 A-coded according to EN 61076-2-101 , Nominal conductor cross-section 1 mm² , Cable length 5 … 10 m
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connecting cables with 5-pin plug/socket M12x1 A-coded according to EN 61076-2-101 , Nominal conductor cross-section 1 mm² , Cable length 5 … 10 m
Specification
| Conforms To Standard |
EN 61076-2-101, IEC 61010-1 |
|---|---|
| Cable Designation |
Without inscription label holder |
| Frequency Of Connection |
100 |
| Product Weight |
822 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores |
5 |
| Electrical Connection 1, Used Connections/Cores |
5 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock |
| Electrical Connection 1, Connection Pattern |
00995384 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
5 |
| Electrical Connection 2, Used Connections/Cores |
5 |
| Operational Voltage Range Dc |
60 V |
| Operational Voltage Range Ac |
60 V |
| Current Rating At 40° C |
4 A |
| Immunity To Surge |
1.5 kV |
| Cable Length |
10 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Bending strength: to Festo standard, Test conditions on request, Energy chain: > 5 million cycles, bending radius 75 mm |
| Bending Radius, Fixed Cable |
21 mm |
| Bending Radius, Moving Cable |
71 mm |
| Cable Diameter |
7 mm |
| Cable Diameter Tolerance |
± 0.1 mm |
| Cable Structure |
5 x 1 mm² |
| Nominal Cross Section Conductor |
1 mm² |
| Wire Ends |
Sheath removed, Cut off bluntly |
| Degree Of Protection |
IP65, IP68, IP69K |
| Note On Degree Of Protection |
In assembled state |
| Special Characteristics |
Oil resistant |
| Ambient Temperature |
-25, 80 °C |
| Ambient Temperature With Moving Cable |
-5, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions, To UK regulations for electrical equipment |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant, Free of halogen, Free of phosphoric acid ester |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Housing |
TPE-U(PUR) |
| Housing Colour |
Black |
| Material Screw Type Lock |
Nickel-plated brass |
| Material Seals |
NBR |
| Material Electrical Contact |
Gold-plated copper alloy |
| Material Insulating Sheath |
PP |
