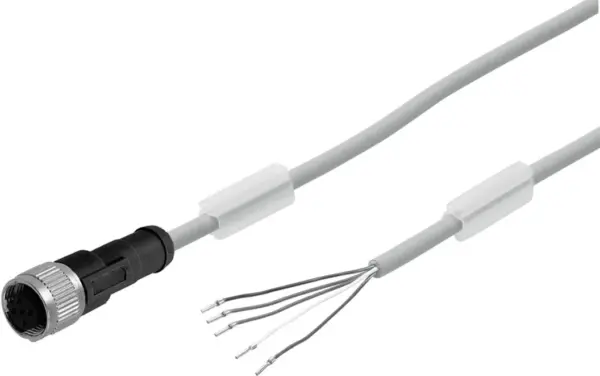

Festo NEBS-M12G5-ES-15-LE5
For connection with rectangular design L1, grid dimension 5.8 mm , For thread M12x1 A-coded according to EN 61076-2-101 , For thread M16x0.75 , Connecting cable for pressure sensor SPAN , Degree of pr…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For connection with rectangular design L1, grid dimension 5.8 mm , For thread M12x1 A-coded according to EN 61076-2-101 , For thread M16x0.75 , Connecting cable for pressure sensor SPAN , Degree of protection IP40, IP65, IP67, IP69K, when mounted , Cable length 0.5 … 10 m , With PVC or PUR cable , Ambient temperature -40 … +70 °C
Specification
| Based On Standard | EN 61076-2-101 |
|---|---|
| Cable Designation | With 2x inscription label holders |
| Frequency Of Connection | 100 |
| Type Of Mounting | Via knurled nut |
| Product Weight | 828 g |
| Electrical Connection 1, Function | Field device side |
| Electrical Connection 1, Design | Round |
| Electrical Connection 1, Connection Type | Socket |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores | 5 |
| Electrical Connection 1, Used Connections/Cores | 5 |
| Electrical Connection 1, Type Of Mounting | Screw-type lock, Rotatable |
| Electrical Connection 1, Compatible Type Of Mounting | Compatible with rotatable/non-rotatable screw-type lock |
| Electrical Connection 1, Connection Pattern | 00995384 |
| Electrical Connection 1, Terminal Allocation | Pin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK, Pin 5 = GY |
| Electrical Connection 2, Function | Controller side |
| Electrical Connection 2, Connection Type | Cable |
| Electrical Connection 2, Connector System | Open end |
| Electrical Connection 2, Number Of Connections/Cores | 5 |
| Electrical Connection 2, Used Connections/Cores | 5 |
| Operational Voltage Range Dc | 60 V |
| Operational Voltage Range Ac | 48 V |
| Current Rating At 40° C | 4 A |
| Immunity To Surge | 1.5 kV |
| Protective Conductor Connection | Not available |
| Shielding | yes |
| Cable Length | 15 m |
| Cable Characteristic | Suitable for energy chains |
| Test Conditions Cable | Test conditions on request |
| Bending Radius, Fixed Cable | 26 mm |
| Bending Radius, Moving Cable | 52 mm |
| Cable Diameter | 5.25 mm |
| Cable Diameter Tolerance | ± 0.2 mm |
| Cable Structure | 5 x 0.34 mm² |
| Nominal Cross Section Conductor | 0.34 mm² |
| Conductor Nominal Cross Section | AWG22 |
| Wire Ends | Cut off bluntly |
| Degree Of Protection | IP65, IP67 |
| Note On Degree Of Protection | In assembled state |
| Special Characteristics | UV resistant, Abrasion-resistant, Low adhesion, Flame-retardant and self-extinguishing, Hydrolysis-resistant, Alkali resistant, Solvent-resistant, Resistant to microbes, Oil resistant, Acid resistant |
| Ambient Temperature | -40, 80 °C |
| Ambient Temperature With Moving Cable | -25, 60 °C |
| Overvoltage Category | II |
| Ce Mark (See Declaration Of Conformity) | In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Note On Materials | RoHS-compliant, Free of halogen, Silicone free |
| Pollution Degree | 3 |
| Note On The Contamination Level | In mounted state |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Material Cable Sheath | TPE-U(PUR) |
| Cable Sheath Colour | Black |
| Material Housing | TPE-U(PUR) |
| Housing Colour | Black |
| Material Screw Type Lock | Die-cast zinc, nickel-plated |
| Material Seals | NBR |
| Material Electrical Contact | Nickel-plated and gold-plated bronze |
| Material Insulating Sheath | PP |
