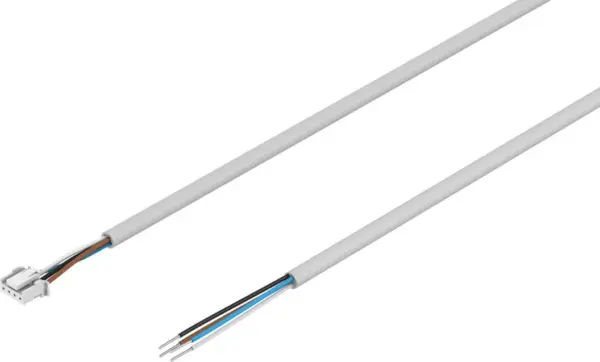

Festo NEBS-L1G4-K-2.5-LE4
For connection with rectangular design L1, grid dimension 5.8 mm , For thread M12x1 A-coded according to EN 61076-2-101 , For thread M16x0.75 , Connecting cable for pressure sensor SPAN , Degree of pr…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For connection with rectangular design L1, grid dimension 5.8 mm , For thread M12x1 A-coded according to EN 61076-2-101 , For thread M16x0.75 , Connecting cable for pressure sensor SPAN , Degree of protection IP40, IP65, IP67, IP69K, when mounted , Cable length 0.5 … 10 m , With PVC or PUR cable , Ambient temperature -40 … +70 °C
Specification
| Cable Designation | With label holder |
|---|---|
| Frequency Of Connection | 100 |
| Product Weight | 53 g |
| Electrical Connection 1, Function | Field device side |
| Electrical Connection 1, Design | Angular |
| Electrical Connection 1, Connection Type | Socket |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Connector System | Connection pattern L1J |
| Electrical Connection 1, Number Of Connections/Cores | 4 |
| Electrical Connection 1, Used Connections/Cores | 4 |
| Electrical Connection 1, Type Of Mounting | Snap-locking |
| Electrical Connection 1, Connection Pattern | 00995720 |
| Electrical Connection 2, Function | Controller side |
| Electrical Connection 2, Connection Type | Cable |
| Electrical Connection 2, Connector System | Open end |
| Electrical Connection 2, Number Of Connections/Cores | 4 |
| Electrical Connection 2, Used Connections/Cores | 4 |
| Operational Voltage Range Dc | 30 V |
| Current Rating At 40° C | 1 A |
| Immunity To Surge | 0.8 kV |
| Cable Length | 2.5 m |
| Cable Characteristic | Standard |
| Test Conditions Cable | Test conditions on request |
| Bending Radius, Fixed Cable | 13 mm |
| Bending Radius, Moving Cable | 42 mm |
| Cable Diameter | 4.1 mm |
| Cable Diameter Tolerance | ± 0.15 mm |
| Cable Structure | 4 x 0.17 mm² |
| Nominal Cross Section Conductor | 0.17 mm² |
| Wire Ends | Cut off bluntly |
| Degree Of Protection | IP40 |
| Note On Degree Of Protection | In assembled state |
| Ambient Temperature | -20, 60 °C |
| Ambient Temperature With Moving Cable | -5, 60 °C |
| Storage Temperature | -20, 60 °C |
| Ce Mark (See Declaration Of Conformity) | In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Note On Materials | RoHS-compliant |
| Pollution Degree | 2 |
| Corrosion Resistance Class Crc | 4 – Very high corrosion stress |
| Material Cable Sheath | PVC |
| Cable Sheath Colour | Grey |
| Material Housing | PA |
| Housing Colour | White |
| Material Electrical Contact | Bronze, tin-plated |
| Material Insulating Sheath | PVC |
