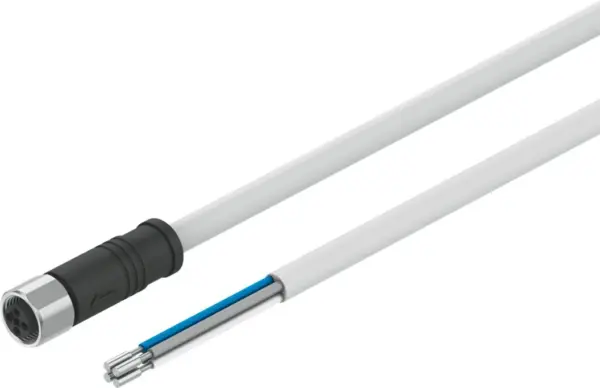

Festo NEBM-T12G4-R-5-LE4
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Based On Standard |
EN 61076-2-111 |
|---|---|
| Cable Designation |
With label holder |
| Product Weight |
410 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M12x1, T-coded according to EN 61076-2-111 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Used Connections/Cores |
4 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock |
| Electrical Connection 1, Connection Pattern |
Socket, M12x1 T-coded according to EN 61076-2-111, 4-pin |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
4 |
| Electrical Connection 2, Used Connections/Cores |
4 |
| Operational Voltage Range Dc |
60 V |
| Current Rating At 40° C |
5 A |
| Immunity To Surge |
1.5 kV |
| Shielding |
no |
| Cable Length |
5 m |
| Cable Characteristic |
Suitable for robot applications |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Fixed Cable |
30 mm |
| Bending Radius, Moving Cable |
75 mm |
| Cable Diameter |
7.5 mm |
| Cable Diameter Tolerance |
± 0.2 mm |
| Cable Structure |
4 x 0.75 mm² |
| Nominal Cross Section Conductor |
0.75 mm² |
| Conductor Nominal Cross Section |
AWG19 |
| Wire Ends |
Sheath removed |
| Degree Of Protection |
IP67 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-40, 80 °C |
| Ambient Temperature With Moving Cable |
-20, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Material Cable Sheath |
PVC |
| Cable Sheath Colour |
Black |
| Material Housing |
TPE-U(PUR) |
| Housing Colour |
Black |
| Material Screw Type Lock |
High-alloy stainless steel |
| Material Seals |
HNBR |
| Material Electrical Contact |
Gold-plated brass |
| Material Insulating Sheath |
PVC |
