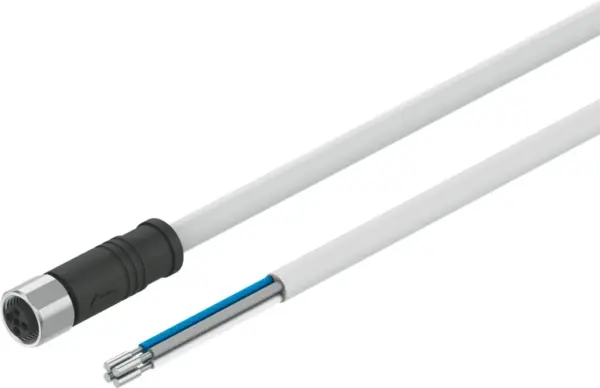

Festo NEBM-T12G4-R-10-LE4
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Based On Standard | EN 61076-2-111 |
|---|---|
| Cable Designation | With label holder |
| Product Weight | 800 g |
| Electrical Connection 1, Function | Field device side |
| Electrical Connection 1, Design | Round |
| Electrical Connection 1, Connection Type | Socket |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Connector System | M12x1, T-coded according to EN 61076-2-111 |
| Electrical Connection 1, Number Of Connections/Cores | 4 |
| Electrical Connection 1, Used Connections/Cores | 4 |
| Electrical Connection 1, Type Of Mounting | Screw-type lock |
| Electrical Connection 1, Connection Pattern | Socket, M12x1 T-coded according to EN 61076-2-111, 4-pin |
| Electrical Connection 2, Function | Controller side |
| Electrical Connection 2, Connection Type | Cable |
| Electrical Connection 2, Connector System | Open end |
| Electrical Connection 2, Number Of Connections/Cores | 4 |
| Electrical Connection 2, Used Connections/Cores | 4 |
| Operational Voltage Range Dc | 60 V |
| Current Rating At 40° C | 5 A |
| Immunity To Surge | 1.5 kV |
| Shielding | no |
| Cable Length | 10 m |
| Cable Characteristic | Suitable for robot applications |
| Test Conditions Cable | Test conditions on request |
| Bending Radius, Fixed Cable | 30 mm |
| Bending Radius, Moving Cable | 75 mm |
| Cable Diameter | 7.5 mm |
| Cable Diameter Tolerance | ± 0.2 mm |
| Cable Structure | 4 x 0.75 mm² |
| Nominal Cross Section Conductor | 0.75 mm² |
| Conductor Nominal Cross Section | AWG19 |
| Wire Ends | Sheath removed |
| Degree Of Protection | IP67 |
| Note On Degree Of Protection | In assembled state |
| Ambient Temperature | -40, 80 °C |
| Ambient Temperature With Moving Cable | -20, 80 °C |
| Ce Mark (See Declaration Of Conformity) | In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Note On Materials | RoHS-compliant |
| Pollution Degree | 3 |
| Corrosion Resistance Class Crc | 0 – No corrosion stress |
| Material Cable Sheath | PVC |
| Cable Sheath Colour | Black |
| Material Housing | TPE-U(PUR) |
| Housing Colour | Black |
| Material Screw Type Lock | High-alloy stainless steel |
| Material Seals | HNBR |
| Material Electrical Contact | Gold-plated brass |
| Material Insulating Sheath | PVC |
