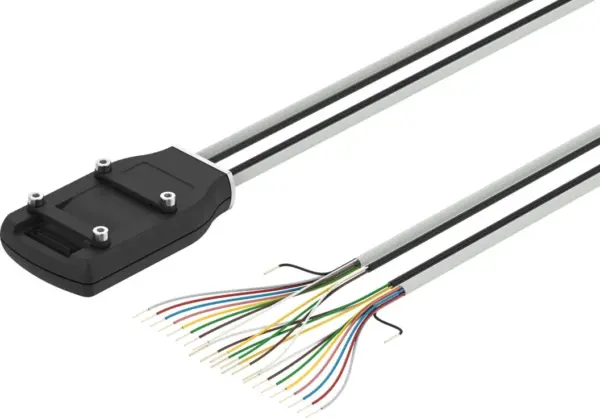

Festo NEBM-SF1W31-E-5-N-LE24
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Conforms To Standard |
DIN 47100 |
|---|---|
| Intended Use |
The connecting cable connects field devices (sensors, actuators) with controllers. |
| Cable Designation |
Without inscription label holder |
| Product Weight |
1480 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Note On Cable Outlet |
90° |
| Electrical Connection 1, Connector System |
Connection pattern F1 |
| Electrical Connection 1, Number Of Connections/Cores |
31 |
| Electrical Connection 1, Type Of Mounting |
Snap-locking |
| Electrical Connection 1, Connection Pattern |
00995929 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
24 |
| Electrical Connection 2, Used Connections/Cores |
24 |
| Operational Voltage Range Dc |
50 V |
| Nominal Operating Voltage Dc |
24 V |
| Shielding |
yes |
| Cable Length |
5 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Fixed Cable |
23.1 mm |
| Bending Radius, Moving Cable |
33 mm |
| Cable Diameter |
4.6 mm |
| Cable Structure |
4 x 0.25 mm², 8 x 0.08 mm² |
| Conductor Nominal Cross Section |
AWG23, AWG28 |
| Wire Ends |
Wire ferrule |
| Degree Of Protection |
IP20 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-5, 70 °C |
| Ambient Temperature With Moving Cable |
-5, 70 °C |
| Storage Temperature |
-5, 70 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions (UK-R) |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
| Material Cable Sheath |
PUR |
| Housing Colour |
Black |
