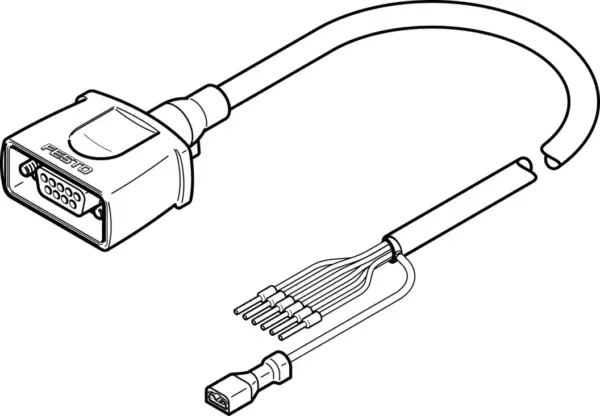

Festo NEBM-S1G9-E-10-Q5-LE6
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Cable Designation | Without inscription label holder |
|---|---|
| Electrical Connection 1, Function | Field device side |
| Electrical Connection 1, Design | Angular |
| Electrical Connection 1, Connection Type | Socket |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Connector System | Sub-D |
| Electrical Connection 1, Number Of Connections/Cores | 9 |
| Electrical Connection 1, Used Connections/Cores | 6 |
| Electrical Connection 1, Connection Pattern | 00995638 |
| Electrical Connection 2, Function | Controller side |
| Electrical Connection 2, Connection Type | Cable |
| Electrical Connection 2, Connector System | Open end |
| Electrical Connection 2, Number Of Connections/Cores | 6 |
| Electrical Connection 2, Used Connections/Cores | 6 |
| Operational Voltage Range Dc | 72 V |
| Nominal Operating Voltage Dc | 24 V |
| Shielding | yes |
| Cable Length | 10 m |
| Cable Characteristic | Suitable for energy chains |
| Bending Radius, Moving Cable | 62 mm |
| Cable Diameter | 6.2 mm |
| Cable Structure | 6 x 0.34 mm² |
| Nominal Cross Section Conductor | 0.34 mm² |
| Wire Ends | Wire ferrule |
| Degree Of Protection | IP65 |
| Note On Degree Of Protection | In assembled state |
| Ambient Temperature | -40, 80 °C |
| Ambient Temperature With Moving Cable | -5, 80 °C |
| Ce Mark (See Declaration Of Conformity) | In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Note On Materials | RoHS-compliant |
| Corrosion Resistance Class Crc | 0 – No corrosion stress |
| Material Cable Sheath | TPE-U(PUR) |
| Cable Sheath Colour | Grey |
