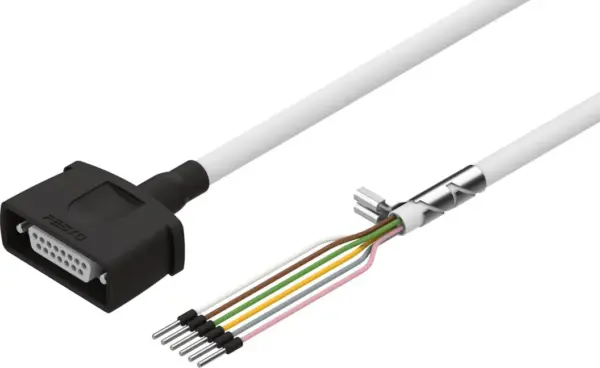

Festo NEBM-S1G15-E-10-Q7-LE6
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Cable Designation |
Without inscription label holder |
|---|---|
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
Sub-D |
| Electrical Connection 1, Number Of Connections/Cores |
15 |
| Electrical Connection 1, Used Connections/Cores |
10 |
| Electrical Connection 1, Connection Pattern |
00995640 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
6 |
| Electrical Connection 2, Used Connections/Cores |
6 |
| Operational Voltage Range Dc |
72 V |
| Nominal Operating Voltage Dc |
24 V |
| Shielding |
yes |
| Cable Length |
10 m |
| Cable Characteristic |
Suitable for energy chains |
| Bending Radius, Moving Cable |
80 mm |
| Cable Diameter |
8 mm |
| Cable Structure |
6 x 0.75 mm² |
| Nominal Cross Section Conductor |
0.75 mm² |
| Wire Ends |
Wire ferrule |
| Degree Of Protection |
IP65 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-40, 80 °C |
| Ambient Temperature With Moving Cable |
-5, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Insulating Sheath |
PP |
