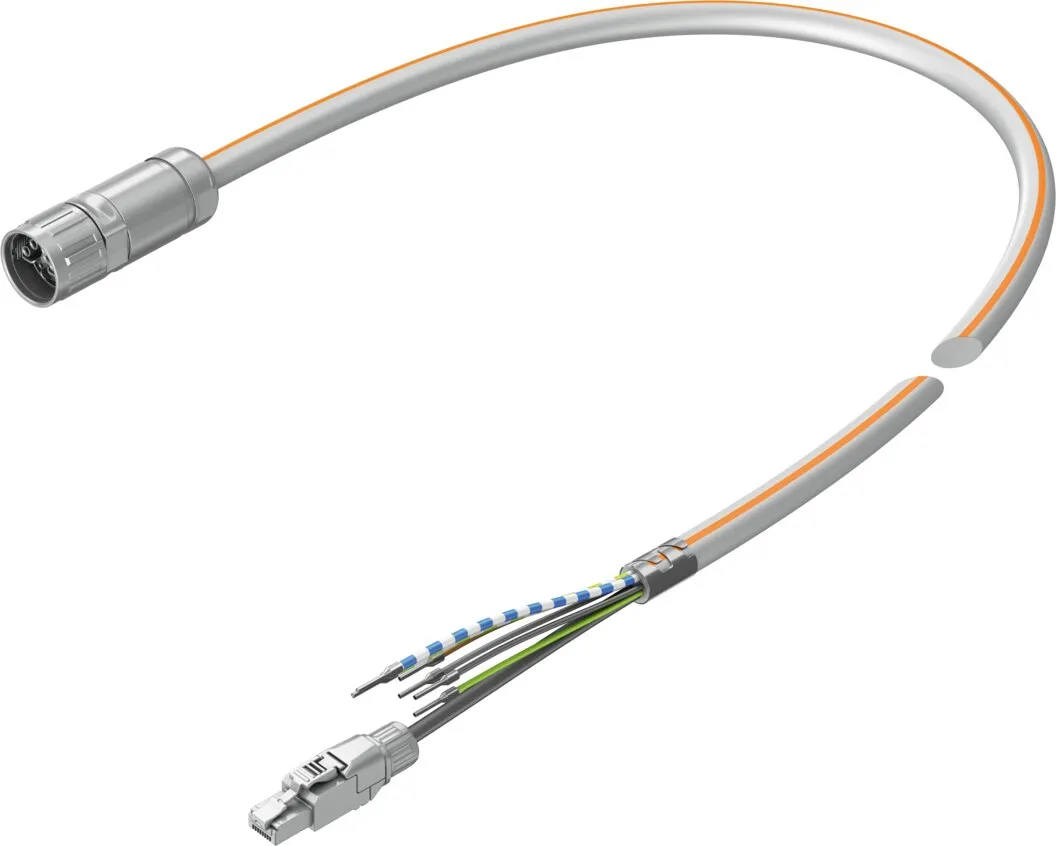

Festo NEBM-M23G15-EH-15-Q7N-R3LEG14
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Based On Standard |
EN 61984 |
|---|---|
| Cable Designation |
Without inscription label holder |
| Product Weight |
5250 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Hybrid socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M23x1 |
| Electrical Connection 1, Number Of Connections/Cores |
15 |
| Electrical Connection 1, Used Connections/Cores |
12 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock |
| Electrical Connection 1, Connection Pattern |
00995912 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Plugs and cables |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
RJ45 and open end |
| Electrical Connection 2, Number Of Connections/Cores |
14 |
| Electrical Connection 2, Used Connections/Cores |
12 |
| Operational Voltage Range Dc |
850 V |
| Operational Voltage Range Ac |
630 V |
| Current Rating At 40° C |
11.7 A |
| Immunity To Surge |
6 kV |
| Shielding |
yes |
| Cable Length |
15 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Fixed Cable |
48 mm |
| Bending Radius, Moving Cable |
90 mm |
| Cable Diameter |
12 mm |
| Cable Diameter Tolerance |
± 0.3 mm |
| Cable Structure |
4 x 0.75 mm² + 1 x (2 x 0.75 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²) |
| Nominal Cross Section Conductor |
0.24 mm² |
| Wire Ends |
Wire ferrule |
| Degree Of Protection |
IP67 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-40, 90 °C |
| Ambient Temperature With Moving Cable |
-25, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions, To UK regulations for electrical equipment |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant, Free of halogen |
| Pollution Degree |
1 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Insulating Sheath |
PP |
