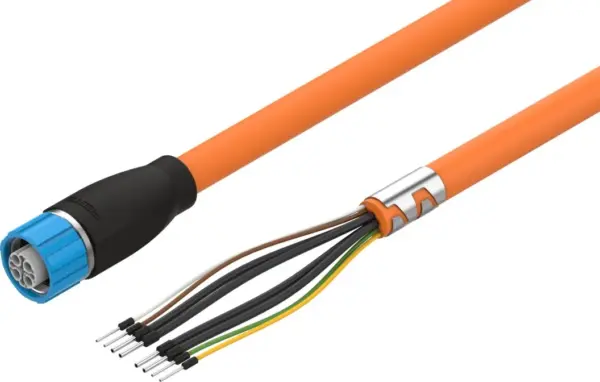

Festo NEBM-M16G8-E-5-Q7-LE8
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Based On Standard |
EN 61984 |
|---|---|
| Cable Designation |
Without inscription label holder |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M16x0.75 |
| Electrical Connection 1, Number Of Connections/Cores |
8 |
| Electrical Connection 1, Used Connections/Cores |
6 |
| Electrical Connection 1, Connection Pattern |
00995654 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
8 |
| Electrical Connection 2, Used Connections/Cores |
6 |
| Operational Voltage Range Dc |
600 V |
| Note On Operational Voltage Range Dc |
0 – 300 V for conductor cross section 0.25 mm² |
| Operational Voltage Range Ac |
600 V |
| Note On Operational Voltage Range Ac |
0 – 300 V for conductor cross section 0.25 mm² |
| Current Rating At 40° C |
12 A |
| Note On Permissible Current Load At 40°C |
4 A for conductor cross section 0.25 mm² |
| Immunity To Surge |
6 kV |
| Note On Immunity To Surge |
4 kV for conductor cross section 0.25 mm² |
| Shielding |
yes |
| Cable Length |
5 m |
| Cable Characteristic |
Suitable for energy chains |
| Bending Radius, Fixed Cable |
55 mm |
| Bending Radius, Moving Cable |
110 mm |
| Cable Diameter |
11 mm |
| Cable Structure |
4 x 0.75 mm² + 2 x (2 x 0.25 mm²) |
| Nominal Cross Section Conductor |
0.25 mm² |
| Wire Ends |
Wire ferrule |
| Degree Of Protection |
IP65 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-50, 90 °C |
| Ambient Temperature With Moving Cable |
-40, 90 °C |
| Ce Mark (See Declaration Of Conformity) |
To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions, To UK regulations for electrical equipment |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Orange |
| Material Insulating Sheath |
TPE-E |
