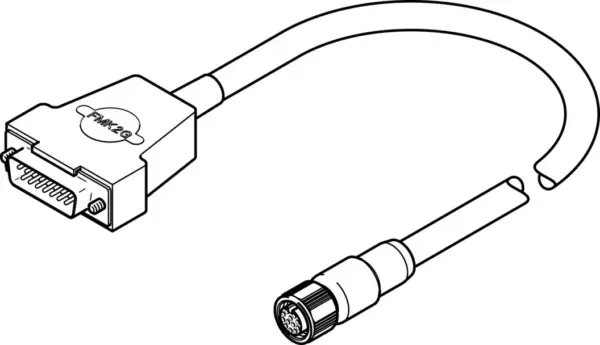

Festo NEBM-M12G12-RS-15-N-S1G15
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Conforms To Standard |
DIN 47100, EN 61984 |
|---|---|
| Cable Designation |
Without inscription label holder |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores |
12 |
| Electrical Connection 1, Used Connections/Cores |
11 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock, size 14 mm |
| Electrical Connection 1, Connection Pattern |
00995668 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Angular |
| Electrical Connection 2, Connection Type |
Plugs |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
Sub-D |
| Electrical Connection 2, Number Of Connections/Cores |
15 |
| Electrical Connection 2, Used Connections/Cores |
11 |
| Electrical Connection 2, Type Of Mounting |
Screw-type lock with hex A/F18 |
| Electrical Connection 2, Connection Pattern |
00995641 |
| Operational Voltage Range Dc |
30 V |
| Nominal Operating Voltage Dc |
24 V |
| Operational Voltage Range Ac |
30 V |
| Nominal Operating Voltage Ac |
24 V |
| Current Rating At 40° C |
1 A |
| Shielding |
yes |
| Cable Length |
15 m |
| Cable Characteristic |
Suitable for robot applications |
| Bending Radius, Moving Cable |
70 mm |
| Cable Diameter |
7 mm |
| Cable Structure |
12 x 0.14 mm² |
| Nominal Cross Section Conductor |
0.14 mm² |
| Degree Of Protection |
IP67 |
| Note On Degree Of Protection |
IP50 for Sub-D plug connector, In assembled state |
| Ambient Temperature |
-25, 80 °C |
| Ambient Temperature With Moving Cable |
40 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Black |
| Material Housing |
TPE-U(PUR) |
| Material Union Nut |
Nickel-plated die-cast zinc |
| Material Seals |
NBR |
| Material Insulating Sheath |
TPE-E |
