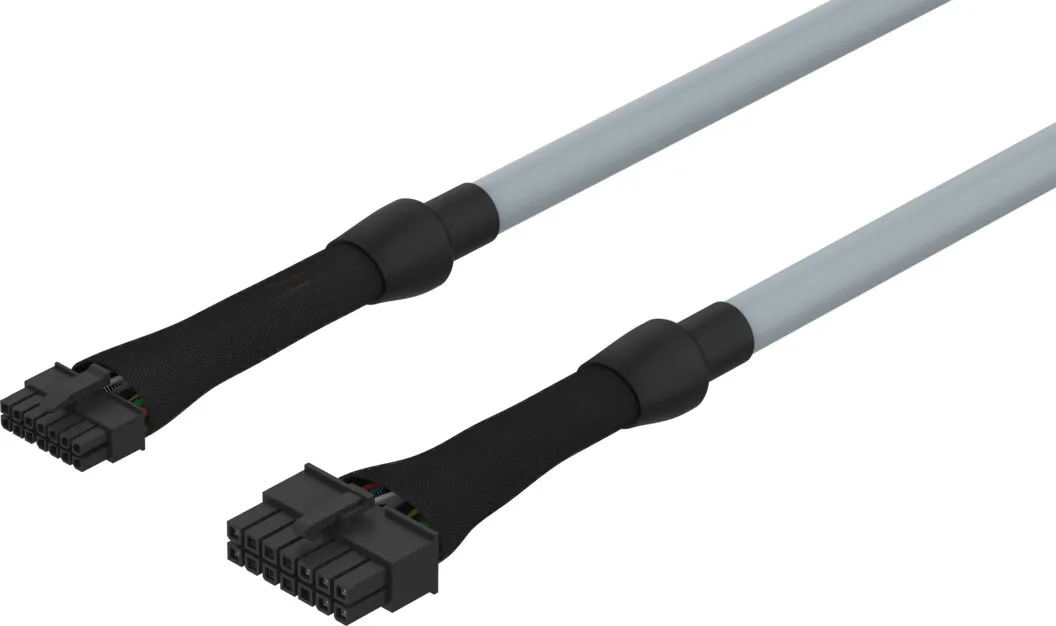

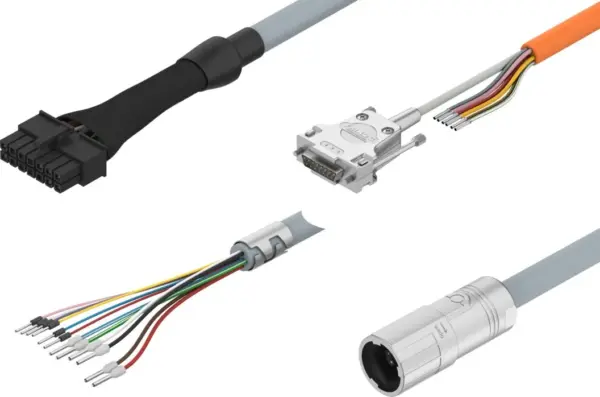

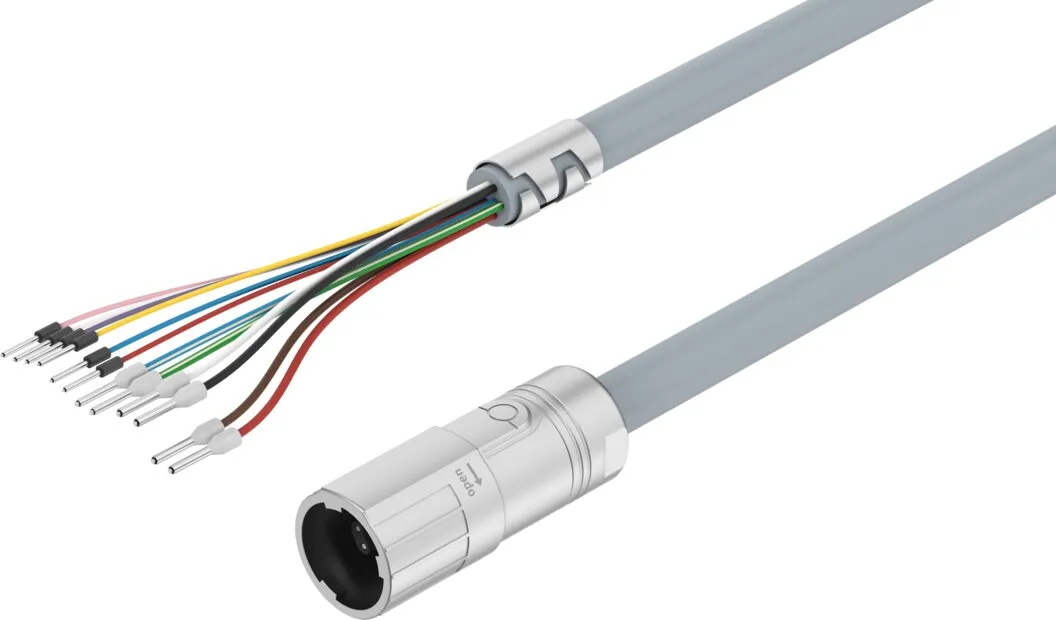

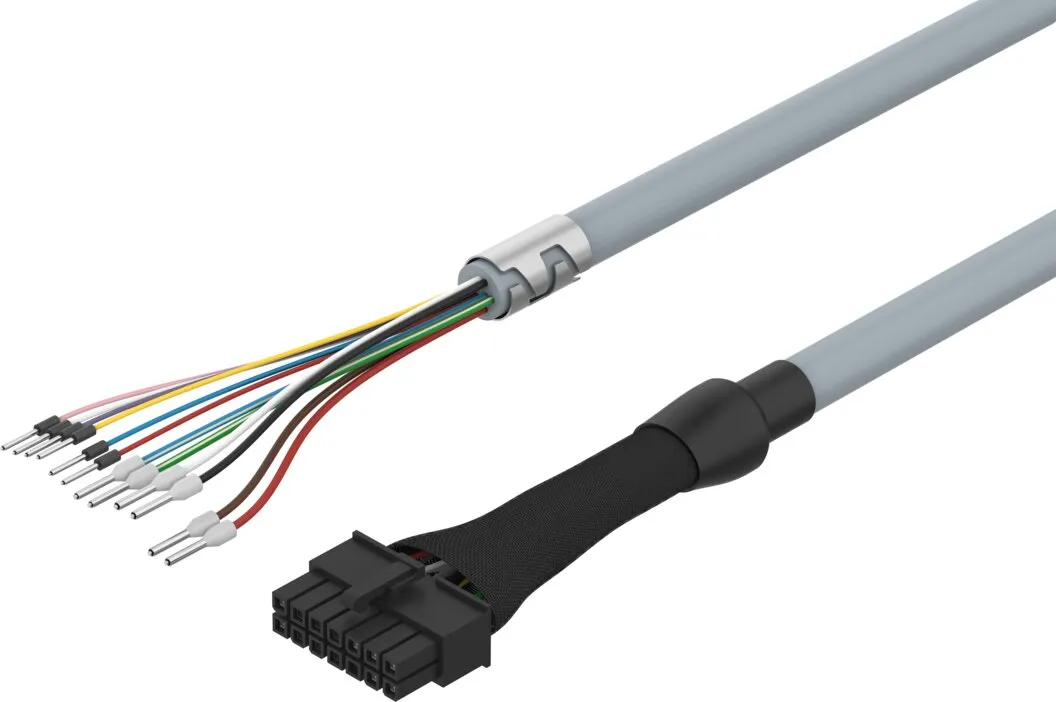

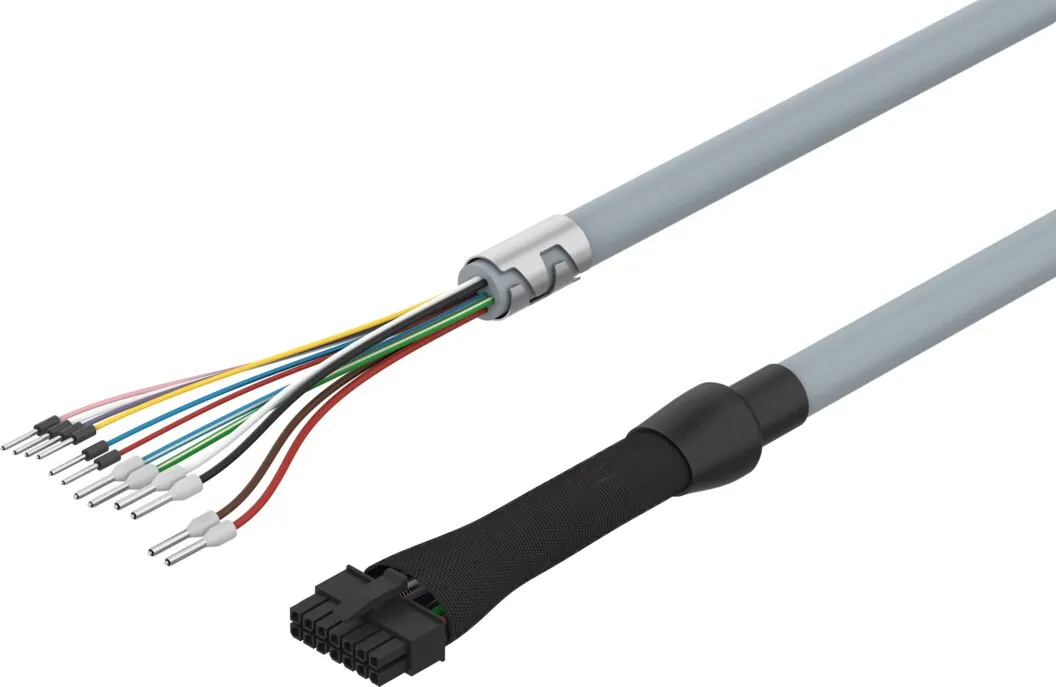

Festo NEBM-LX/M17-
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Based On Standard |
EN 61984 |
|---|---|
| Cable Designation |
Without inscription label holder |
| Product Weight |
365, 1880 g |
| Electrical Connection |
12-pin, 14-pin |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular, Round |
| Electrical Connection 1, Connection Type |
Hybrid socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
Plug pattern L10, Connection pattern L5, M17x0.75 |
| Electrical Connection 1, Number Of Connections/Cores |
12 |
| Electrical Connection 1, Used Connections/Cores |
12 |
| Electrical Connection 1, Type Of Mounting |
Snap-locking, Screw-type lock |
| Electrical Connection 1, Connection Pattern |
00997531, 00997533 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Socket, Cable |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
14 |
| Electrical Connection 2, Used Connections/Cores |
13 |
| Electrical Connection 2, Type Of Mounting |
Snap-locking, Screw-type lock, Plug-in |
| Electrical Connection 2, Connection Pattern |
00997532, 00997534 |
| Operational Voltage Range Dc |
48 V |
| Current Rating At 40° C |
7.6, 17.8 A |
| Immunity To Surge |
1.5 kV |
| Shielding |
yes |
| Cable Length |
0.5, 20 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Fixed Cable |
42, 43.2 mm |
| Bending Radius, Moving Cable |
78.75, 81 mm |
| Cable Diameter |
10.5, 10.8 mm |
| Cable Diameter Tolerance |
± 0.3 mm |
| Cable Structure |
4 x 0.5 mm² + 2 x 0.5 mm² + 6 x 0.15 mm², 4 x 0.75 mm² + 2 x 0.5 mm² + 6 x 0.15 mm², 4 x 1.5 mm² + 2 x 0.5 mm² + 6 x 0.15 mm² |
| Nominal Cross Section Conductor |
1.5 mm² |
| Wire Ends |
Wire ferrule, Pin terminal |
| Degree Of Protection |
IP20, IP67 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-40, 90 °C |
| Ambient Temperature With Moving Cable |
-25, 80 °C |
| Overvoltage Category |
I |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant, Free of halogen |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Insulating Sheath |
PP |
