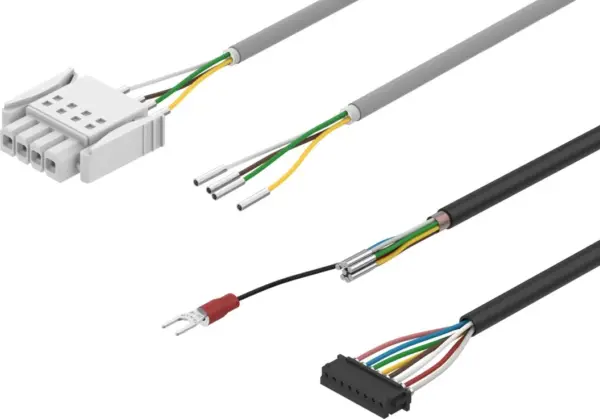

Festo NEBM-L15G24-ES-3-LE24
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Cable Designation |
Without inscription label holder |
|---|---|
| Product Weight |
210 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Connection Type |
4x socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
Plug pattern L15 |
| Electrical Connection 1, Number Of Connections/Cores |
24 |
| Electrical Connection 1, Used Connections/Cores |
24 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
4x cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
24 |
| Electrical Connection 2, Used Connections/Cores |
24 |
| Nominal Operating Voltage Dc |
24 V |
| Shielding |
yes |
| Cable Length |
3 m |
| Cable Characteristic |
Suitable for energy chains |
| Bending Radius, Fixed Cable |
23.1 mm |
| Bending Radius, Moving Cable |
33 mm |
| Cable Diameter |
3.3, 4.6 mm |
| Cable Structure |
2 x 4 x 0.25 mm² + 2 x 8 x 0.08 mm² |
| Nominal Cross Section Conductor |
0.08, 0.25 mm² |
| Wire Ends |
Wire ferrule |
| Ambient Temperature |
-30, 70 °C |
| Ambient Temperature With Moving Cable |
-5, 70 °C |
| Storage Temperature |
-30, 70 °C |
| Relative Air Humidity |
0 – 100% |
| Nominal Altitude Of Use |
<= 2000 m NHN |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC |
| Kc Mark |
KC-EMV |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
| Material Cable Sheath |
PUR |
