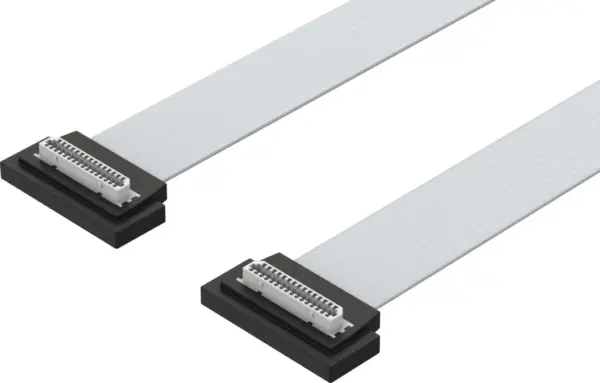

Festo NEBM-F1W31-XC-0.5-F1N-DF1W31
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For stepper and servo motors , For motor controllers , For servo drive , Can be used in a wide temperature range , Suitable for energy chains , Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Specification
| Cable Designation |
Without inscription label holder |
|---|---|
| Frequency Of Connection |
30 |
| Product Weight |
27 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Angled |
| Electrical Connection 1, Note On Cable Outlet |
90° |
| Electrical Connection 1, Connector System |
Connection pattern F1 |
| Electrical Connection 1, Number Of Connections/Cores |
31 |
| Electrical Connection 1, Used Connections/Cores |
31 |
| Electrical Connection 1, Type Of Mounting |
Snap-locking |
| Electrical Connection 1, Connection Pattern |
00995930 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Angular |
| Electrical Connection 2, Connection Type |
Socket |
| Electrical Connection 2, Cable Outlet |
Angled |
| Electrical Connection 2, Note On Cable Outlet |
90° |
| Electrical Connection 2, Connector System |
Connection pattern F1 |
| Electrical Connection 2, Number Of Connections/Cores |
31 |
| Electrical Connection 2, Used Connections/Cores |
31 |
| Electrical Connection 2, Type Of Mounting |
Snap-locking |
| Electrical Connection 2, Connection Pattern |
00995930 |
| Operational Voltage Range Dc |
50 V |
| Nominal Operating Voltage Dc |
24 V |
| Current Rating At 40° C |
0.5 A |
| Immunity To Surge |
0.25 kV |
| Cable Length |
0.5 m |
| Cable Characteristic |
For dynamic applications |
| Test Conditions Cable |
Test conditions on request |
| Information On Bending Radius, Fixed Cable Installation |
Can be bent once |
| Bending Radius, Moving Cable |
25 mm |
| Cable Structure |
31 x 0.01 mm² |
| Nominal Cross Section Conductor |
0.0105 mm² |
| Degree Of Protection |
IP20 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-20, 75 °C |
| Ambient Temperature With Moving Cable |
-5, 70 °C |
| Storage Temperature |
-25, 55 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
1 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Cable Sheath |
PET |
| Cable Sheath Colour |
Grey |
| Material Housing |
PA |
| Housing Colour |
Black |
| Material Electrical Contact |
Copper alloy, tin-plated |
