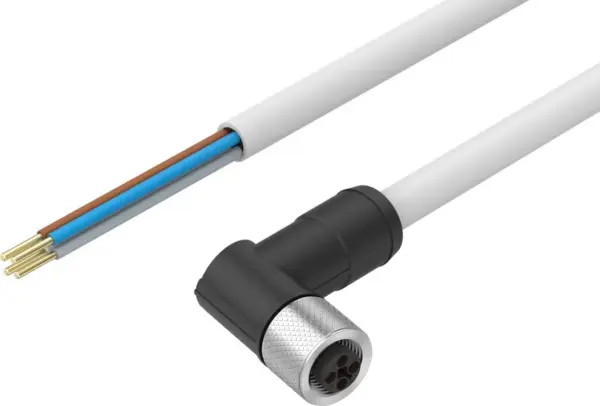

Festo NEBL-T12W4-E-10-N-LE4
For power supply , Suitable for use with energy chains
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For power supply , Suitable for use with energy chains
Specification
| Based On Standard |
EN 61076-2-111 |
|---|---|
| Approval |
c UL us listed (OL) |
| Certificate Issuing Authority |
UL E504946 |
| Cable Designation |
Without inscription label holder |
| Product Weight |
1051 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Angled |
| Electrical Connection 1, Connector System |
M12x1, T-coded according to EN 61076-2-111 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Used Connections/Cores |
4 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock |
| Electrical Connection 1, Connection Pattern |
Socket, M12x1 T-coded according to EN 61076-2-111, 4-pin |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
4 |
| Electrical Connection 2, Used Connections/Cores |
4 |
| Operational Voltage Range Dc |
63 V |
| Current Rating At 40° C |
12 A |
| Immunity To Surge |
1.5 kV |
| Shielding |
no |
| Cable Length |
10 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Fixed Cable |
34 mm |
| Bending Radius, Moving Cable |
68 mm |
| Cable Diameter |
6.75 mm |
| Cable Diameter Tolerance |
± 0.2 mm |
| Cable Structure |
4 x 1.5 mm² |
| Nominal Cross Section Conductor |
1.5 mm² |
| Wire Ends |
Sheath removed |
| Degree Of Protection |
IP65, IP67 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-50, 85 °C |
| Ambient Temperature With Moving Cable |
-30, 85 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Black |
| Material Housing |
PA |
| Housing Colour |
Black |
| Material Screw Type Lock |
Die-cast zinc, nickel-plated |
| Material Seals |
NBR |
| Material Electrical Contact |
Brass |
| Material Insulating Sheath |
PP |
