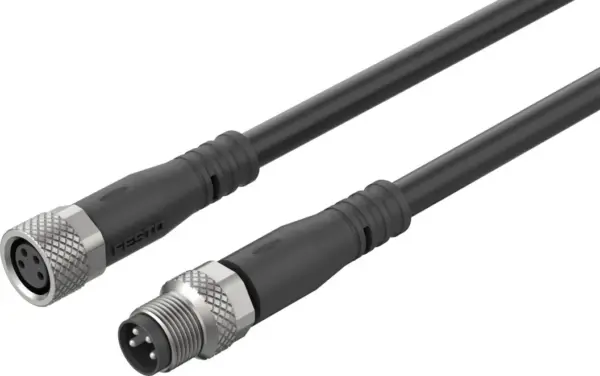

Festo NEBL-M8G4-E-15-N-M8G4
For power supply , Suitable for use with energy chains
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For power supply , Suitable for use with energy chains
Specification
| Conforms To Standard |
EN 61076-2-104 |
|---|---|
| Approval |
c UL us listed (OL) |
| Explosion Protection |
The information in the certificate must be observed!, Zone 2 (ATEX), Zone 22 (ATEX) |
| Certificate Issuing Authority |
UL E253748 |
| Cable Designation |
Without inscription label holder |
| Product Weight |
539 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M8x1, A-coded, to EN 61076-2-104 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Used Connections/Cores |
4 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock with hexagon A/F 9 mm and longitudinal knurl |
| Electrical Connection 1, Connection Pattern |
00991872 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Round |
| Electrical Connection 2, Connection Type |
Plugs |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
M8x1, A-coded to EN 61076-2-104 |
| Electrical Connection 2, Number Of Connections/Cores |
4 |
| Electrical Connection 2, Used Connections/Cores |
4 |
| Electrical Connection 2, Type Of Mounting |
Screw-type lock with hexagon A/F 9 mm and longitudinal knurl |
| Electrical Connection 2, Connection Pattern |
00991171 |
| Operational Voltage Range Dc |
30 V |
| Nominal Operating Voltage Dc |
24 V |
| Operational Voltage Range Ac |
30 V |
| Nominal Operating Voltage Ac |
24 V |
| Current Rating At 40° C |
5.2 A |
| Immunity To Surge |
0.8 kV |
| Protective Conductor Connection |
Not available |
| Shielding |
no |
| Cable Length |
15 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Fixed Cable |
15 mm |
| Bending Radius, Moving Cable |
50 mm |
| Cable Diameter |
4.8 mm |
| Cable Diameter Tolerance |
± 0.15 mm |
| Cable Structure |
4 x 0.5 mm² |
| Nominal Cross Section Conductor |
0.5 mm² |
| Degree Of Protection |
IP65, IP67, IP69K |
| Note On Degree Of Protection |
In assembled state |
| Special Characteristics |
Oil resistant |
| Ambient Temperature |
-40, 90 °C |
| Ambient Temperature With Moving Cable |
-20, 90 °C |
| Storage Temperature |
-40, 90 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant, Free of halogen |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Black |
| Material Housing |
TPE-U(PUR) |
| Housing Colour |
Black |
| Material Screw Type Lock |
Nickel-plated brass |
| Material Seals |
FPM |
| Material Electrical Contact |
Gold-plated copper alloy |
| Material Insulating Sheath |
PP |
