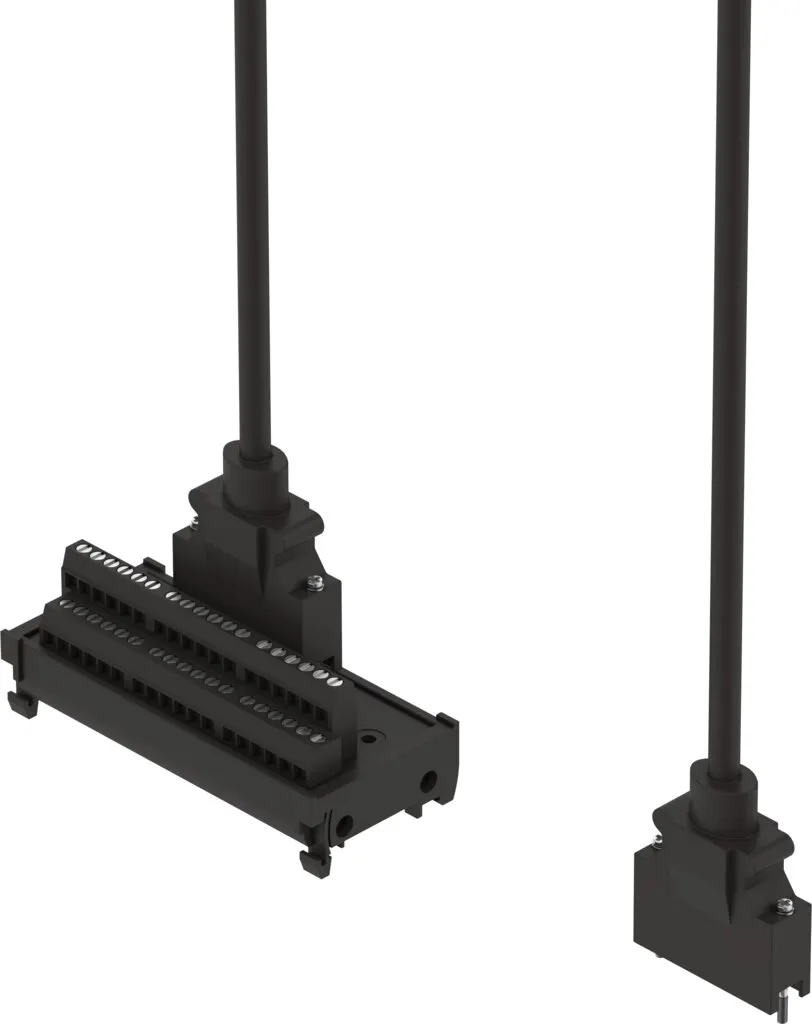

Festo NEBC-S2G36-K-0.5-N-C2W36-S7
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Specification
| Cable Designation |
Without inscription label holder |
|---|---|
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
SCSI |
| Electrical Connection 1, Number Of Connections/Cores |
36 |
| Electrical Connection 1, Used Connections/Cores |
36 |
| Electrical Connection 1, Connection Pattern |
00995812 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Angular |
| Electrical Connection 2, Connection Type |
Terminal strip |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
Screw terminal |
| Electrical Connection 2, Number Of Connections/Cores |
36 |
| Electrical Connection 2, Used Connections/Cores |
36 |
| Electrical Connection 2, Type Of Mounting |
On H-rail |
| Electrical Connection 2, Connection Pattern |
00995839 |
| Operational Voltage Range Dc |
30 V |
| Operational Voltage Range Ac |
30 V |
| Current Rating At 40° C |
1.5 A |
| Immunity To Surge |
0.5 kV |
| Cable Length |
0.5 m |
| Cable Characteristic |
Standard |
| Bending Radius, Fixed Cable |
74 mm |
| Bending Radius, Moving Cable |
110 mm |
| Cable Diameter |
7.4 mm |
| Cable Structure |
18 x 2 x 0.09 mm² |
| Nominal Cross Section Conductor |
0.09 mm² |
| Degree Of Protection |
IP20 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-40, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
1 |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Material Cable Sheath |
PVC |
| Cable Sheath Colour |
Black |
| Material Housing |
PBT |
| Housing Colour |
Green, Black |
| Material Insulating Sheath |
PVC |
