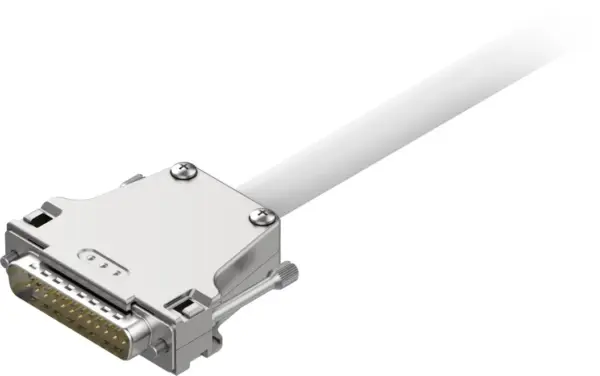

Festo NEBC-S1G25-K-2.5-N-LE26
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Specification
| Cable Designation |
Without inscription label holder |
|---|---|
| Mounting Position |
optional |
| Product Weight |
570 g |
| Electrical Connection 1 |
Straight plug connector, Sub-D, 25-pin |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
Sub-D |
| Electrical Connection 1, Number Of Connections/Cores |
25 |
| Electrical Connection 1, Used Connections/Cores |
25 |
| Electrical Connection 1, Type Of Mounting |
2x screw 4-40 UNC |
| Electrical Connection 1, Connection Pattern |
00995643 |
| Electrical Connection 2 |
Open end, 26-wire |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
26 |
| Electrical Connection 2, Used Connections/Cores |
26 |
| Operational Voltage Range Dc |
30 V |
| Nominal Operating Voltage Dc |
24 V |
| Current Rating At 40° C |
3.9 A |
| Permissible Current Load |
3.9 A |
| Immunity To Surge |
0.8 kV |
| Shielding |
yes |
| Cable Length |
2.5 m |
| Cable Characteristic |
Standard |
| Test Conditions Cable |
Bending strength: to Festo standard |
| Min. Cable Bending Radius |
220 mm |
| Bending Radius, Fixed Cable |
220 mm |
| Cable Diameter |
10.8 mm |
| Cable Diameter Tolerance |
± 0.2 mm |
| Cable Structure |
5 x (2 x 0.25 mm²) + 16 x 0.25 mm² |
| Nominal Cross Section Conductor |
0.25 mm² |
| Connection Cross Section |
0.25 mm² |
| Wire Ends |
Wire ferrule, Pin terminal |
| Degree Of Protection |
IP20 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-30, 80 °C |
| Ambient Temperature With Moving Cable |
-5, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Material Cable Sheath |
PVC |
| Cable Sheath Colour |
Grey |
| Material Housing |
Die-cast zinc, nickel-plated |
| Material Electrical Contact |
Copper alloy, tin-plated, Nickel-plated and gold-plated |
| Material Insulating Sheath |
PVC |
