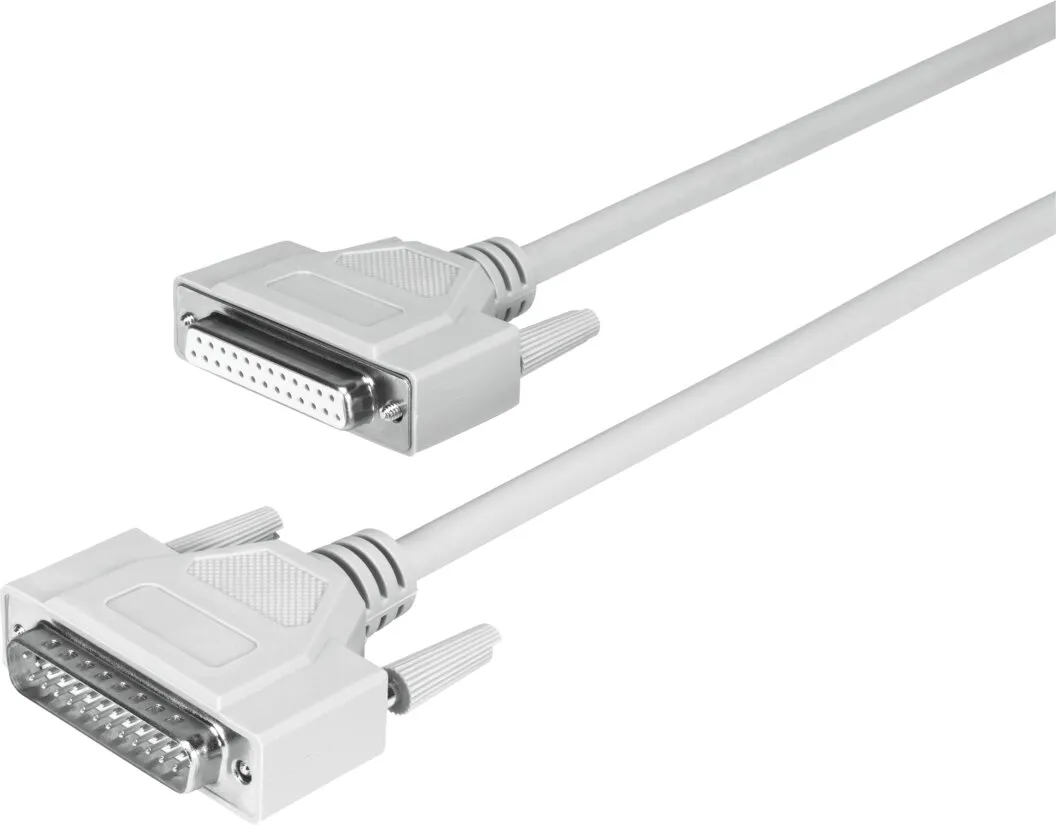

Festo NEBC-S1G25-K-2.0-N-S1G25
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Specification
| Cable Designation |
Without inscription label holder |
|---|---|
| Electrical Connection |
25-pin, Straight plug, Sub-D/Sub-D |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
Sub-D |
| Electrical Connection 1, Number Of Connections/Cores |
25 |
| Electrical Connection 1, Used Connections/Cores |
25 |
| Electrical Connection 1, Type Of Mounting |
2x screw 4-40 UNC |
| Electrical Connection 1, Connection Pattern |
00995643 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Angular |
| Electrical Connection 2, Connection Type |
Socket |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
Sub-D |
| Electrical Connection 2, Number Of Connections/Cores |
25 |
| Electrical Connection 2, Used Connections/Cores |
25 |
| Electrical Connection 2, Type Of Mounting |
2x screw 4-40 UNC |
| Electrical Connection 2, Connection Pattern |
00995642 |
| Nominal Operating Voltage Dc |
24 V |
| Current Rating At 40° C |
1 A |
| Shielding |
yes |
| Cable Length |
2 m |
| Cable Characteristic |
Standard |
| Cable Diameter |
7 mm |
| Degree Of Protection |
IP40 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
70 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Material Cable Sheath |
PVC |
| Cable Sheath Colour |
Grey |
| Housing Colour |
grey |
