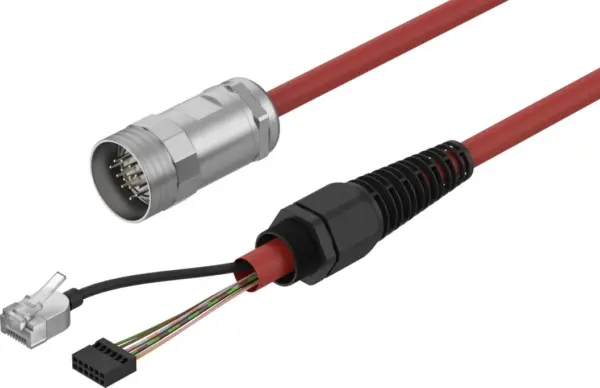

Festo NEBC-R3Z12G20-KH-15-N-SBS-RSG17-ET-S1
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Specification
| Cable Designation |
Without inscription label holder |
|---|---|
| Product Weight |
1900 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Plug and socket strip |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
RJ45 and socket strip 12 pins, 2 rows |
| Electrical Connection 1, Number Of Connections/Cores |
20 |
| Electrical Connection 1, Used Connections/Cores |
14 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock |
| Electrical Connection 1, Connection Pattern |
00997347 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Round |
| Electrical Connection 2, Connection Type |
Hybrid plug |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Number Of Connections/Cores |
17 |
| Electrical Connection 2, Used Connections/Cores |
14 |
| Electrical Connection 2, Type Of Mounting |
Threaded |
| Electrical Connection 2, Connection Pattern |
00997346 |
| Operational Voltage Range Dc |
24 V |
| Nominal Operating Voltage Dc |
24 V |
| Current Rating At 40° C |
11.7 A |
| Immunity To Surge |
6 kV |
| Shielding |
no |
| Cable Length |
15 m |
| Cable Characteristic |
Standard |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Fixed Cable |
130 mm |
| Bending Radius, Moving Cable |
130 mm |
| Cable Diameter |
8 mm |
| Cable Diameter Tolerance |
± 1 mm |
| Cable Structure |
4 x (1 x 0.128 mm²) + 10 x 0.128 mm² |
| Nominal Cross Section Conductor |
0.128 mm² |
| Degree Of Protection |
IP65 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
40 °C |
| Ambient Temperature With Moving Cable |
40 °C |
| Storage Temperature |
-20, 70 °C |
| Ce Mark (See Declaration Of Conformity) |
To EU Low Voltage Directive |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Red |
| Material Insulating Sheath |
PP |
