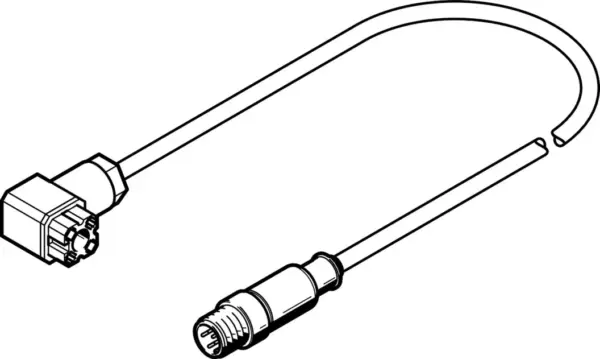

Festo NEBC-P1W4-K-0.3-N-M12G5
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Specification
| Based On Standard |
EN 61076-2-101 |
|---|---|
| Cable Designation |
Without inscription label holder |
| Product Weight |
188 g |
| Electrical Connection |
5-pin, M12x1, Straight plug, Square design/angled |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Angled |
| Electrical Connection 1, Connector System |
Connection pattern P1 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Used Connections/Cores |
4 |
| Electrical Connection 1, Type Of Mounting |
Central screw M3 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Round |
| Electrical Connection 2, Connection Type |
Plugs |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 2, Number Of Connections/Cores |
5 |
| Electrical Connection 2, Used Connections/Cores |
4 |
| Electrical Connection 2, Type Of Mounting |
Screw-type lock |
| Electrical Connection 2, Connection Pattern |
00997355 |
| Operational Voltage Range Dc |
30 V |
| Operational Voltage Range Ac |
30 V |
| Current Rating At 40° C |
4 A |
| Immunity To Surge |
0.8 kV |
| Protective Conductor Connection |
Available |
| Shielding |
yes |
| Cable Length |
0.3 m |
| Cable Characteristic |
Standard |
| Min. Cable Bending Radius |
90 mm |
| Bending Radius, Fixed Cable |
90 mm |
| Cable Diameter |
5.9 mm |
| Permissible Cable Diameter |
5.7, 6.1 mm |
| Cable Structure |
4 x 0.34 mm² |
| Nominal Cross Section Conductor |
0.34 mm² |
| Degree Of Protection |
IP65 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-25, 80 °C |
| Ambient Temperature With Moving Cable |
-5, 70 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
0 – No corrosion stress |
| Material Cable Sheath |
PVC, TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Housing |
TPE-U(PUR) |
| Housing Colour |
Black |
| Material Insulating Sheath |
PVC |
