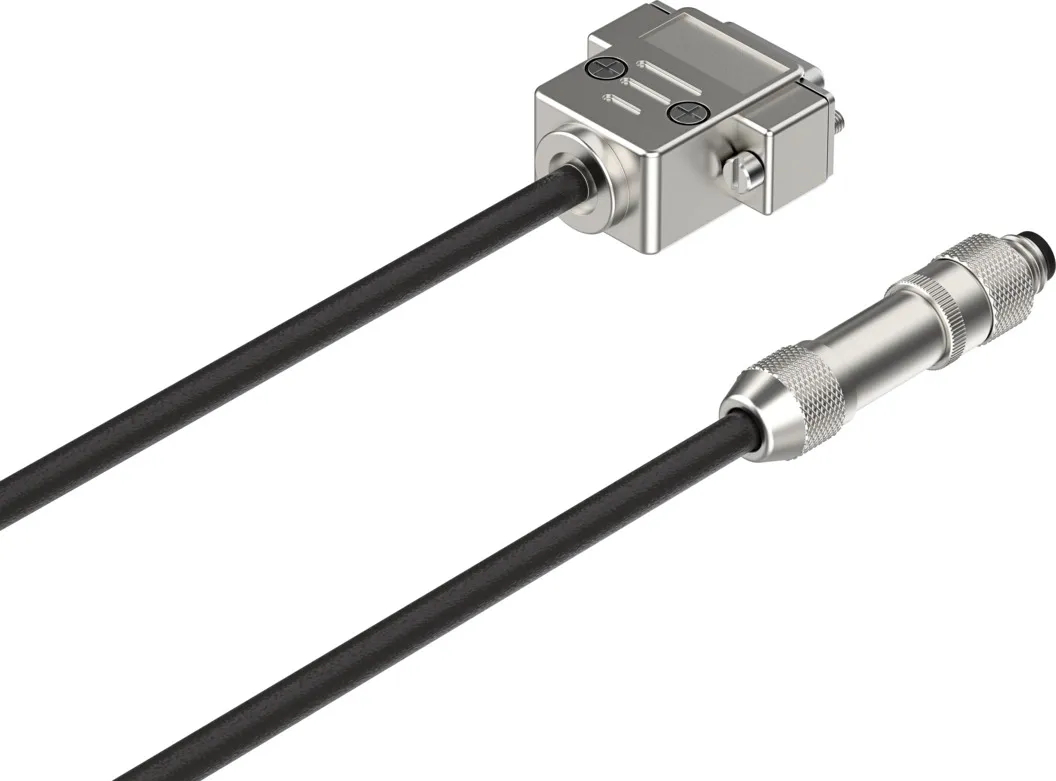

Festo NEBC-M8G4-ES-2.5-N-SB-S1G9-RS2-S7
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Specification
| Protocol |
RS232 |
|---|---|
| Cable Designation |
With accessories |
| Mounting Position |
optional |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M8x1, A-coded, to EN 61076-2-104 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Used Connections/Cores |
3 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock |
| Electrical Connection 1, Connection Pattern |
00995708 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Angular |
| Electrical Connection 2, Connection Type |
Socket |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
Sub-D |
| Electrical Connection 2, Number Of Connections/Cores |
9 |
| Electrical Connection 2, Used Connections/Cores |
8 |
| Electrical Connection 2, Type Of Mounting |
2x screw 4-40 UNC |
| Electrical Connection 2, Connection Pattern |
00995638 |
| Operational Voltage Range Dc |
24 V |
| Nominal Operating Voltage Dc |
24 V |
| Current Rating At 40° C |
4 A |
| Immunity To Surge |
1.5 kV |
| Shielding |
yes |
| Cable Length |
2.5 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Fixed Cable |
24 mm |
| Bending Radius, Moving Cable |
47 mm |
| Cable Diameter |
4.6 mm |
| Cable Diameter Tolerance |
± 0.1 mm |
| Cable Structure |
3 x 0.34 mm² |
| Nominal Cross Section Conductor |
0.34 mm² |
| Degree Of Protection |
IP67 |
| Note On Degree Of Protection |
IP20 for Sub-D socket, In assembled state |
| Ambient Temperature |
50 °C |
| Ambient Temperature With Moving Cable |
50 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364 zone III |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
2 |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Black |
