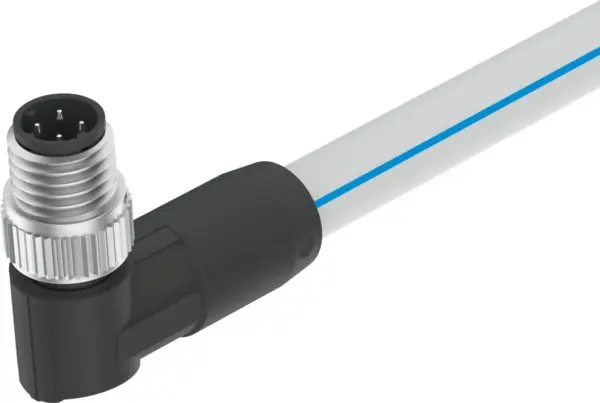

Festo NEBC-D8W4-ES-25-N-S-D8W4-ET
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Specification
| Based On Standard |
EN 61076-2-114 |
|---|---|
| Approval |
c UL us (OL) |
| Certificate Issuing Authority |
UL E474609 |
| Cable Designation |
Without inscription label holder |
| Frequency Of Connection |
100 |
| Product Weight |
1467 g |
| Electrical Connection 1, Function |
Controller side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Cable Outlet |
Angled |
| Electrical Connection 1, Connector System |
M8x1, D-coded according to EN 61076-2-114 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Used Connections/Cores |
4 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock with longitudinal knurl |
| Electrical Connection 1, Connection Pattern |
00995938 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Round |
| Electrical Connection 2, Connection Type |
Plugs |
| Electrical Connection 2, Cable Outlet |
Angled |
| Electrical Connection 2, Connector System |
M8x1, D-coded according to EN 61076-2-114 |
| Electrical Connection 2, Number Of Connections/Cores |
4 |
| Electrical Connection 2, Used Connections/Cores |
4 |
| Electrical Connection 2, Type Of Mounting |
Screw-type lock with longitudinal knurl |
| Electrical Connection 2, Connection Pattern |
00995938 |
| Operational Voltage Range Dc |
30 V |
| Nominal Operating Voltage Dc |
24 V |
| Current Rating At 40° C |
3 A |
| Immunity To Surge |
1.5 kV |
| Reverse Polarity Protection |
no |
| Protective Conductor Connection |
Not available |
| Shielding |
yes |
| Transmission Characteristics |
According to system communication AP |
| Cable Length |
25 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Fixed Cable |
20 mm |
| Bending Radius, Moving Cable |
75 mm |
| Cable Diameter |
6.3 mm |
| Cable Diameter Tolerance |
± 0.2 mm |
| Cable Structure |
1 x (4 x AWG22) |
| Conductor Nominal Cross Section |
AWG22 |
| Degree Of Protection |
IP65, IP67 |
| Note On Degree Of Protection |
In assembled state |
| Special Characteristics |
Oil resistant |
| Ambient Temperature |
-20, 60 °C |
| Ambient Temperature With Moving Cable |
-5, 60 °C |
| Storage Temperature |
-40, 70 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant, Free of halogen |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Silver-grey with sky blue stripe |
| Material Housing |
TPE-U(PUR) |
| Housing Colour |
Black |
| Material Screw Type Lock |
Nickel-plated brass |
| Material Seals |
NBR |
| Material Electrical Contact |
Gold-plated copper alloy |
| Material Insulating Sheath |
PP |
