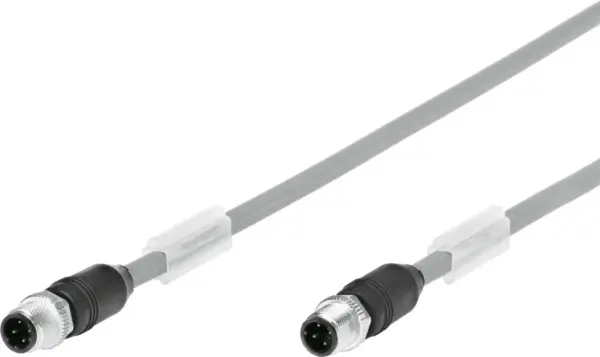

Festo NEBC-D12G4-ES-3-S-D12G4-ET
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Specification
| Cable Designation |
With label holder |
|---|---|
| Frequency Of Connection |
50 |
| Product Weight |
211 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Plugs |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M12x1, D-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Used Connections/Cores |
4 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock with 13 mm hexagon and longitudinal knurl |
| Electrical Connection 1, Connection Pattern |
00995612 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Round |
| Electrical Connection 2, Connection Type |
Plugs |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
M12x1, D-coded to EN 61076-2-101 |
| Electrical Connection 2, Number Of Connections/Cores |
4 |
| Electrical Connection 2, Used Connections/Cores |
4 |
| Electrical Connection 2, Type Of Mounting |
Screw-type lock with 13 mm hexagon and longitudinal knurl |
| Electrical Connection 2, Connection Pattern |
00995612 |
| Operational Voltage Range Dc |
30 V |
| Current Rating At 40° C |
4 A |
| Immunity To Surge |
0.8 kV |
| Note On Immunity To Surge |
A leakage current of up to 20 mA is permissible due to shielding. |
| Shielding |
yes |
| Transmission Characteristics |
In accordance with category 5, EN 50173, class D, In accordance with category 5, ISO/IEC 11801, class D |
| Specification Ethernet Cable |
Type: CAT.5 |
| Cable Length |
3 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Bending strength: to Festo standard, Test conditions on request, Energy chain: > 2 million cycles, bending radius 100 mm |
| Bending Radius, Fixed Cable |
40 mm |
| Bending Radius, Moving Cable |
100 mm |
| Cable Diameter |
6.7 mm |
| Cable Diameter Tolerance |
± 0.3 mm |
| Cable Structure |
4 x 0.34 mm² |
| Nominal Cross Section Conductor |
0.34 mm² |
| Conductor Nominal Cross Section |
AWG22 |
| Degree Of Protection |
IP65, IP67 |
| Special Characteristics |
Oil resistant |
| Ambient Temperature |
-25, 80 °C |
| Ambient Temperature With Moving Cable |
-20, 60 °C |
| Storage Temperature |
-25, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Green |
| Material Housing |
TPE-U(PUR) |
| Housing Colour |
Black |
| Material Screw Type Lock |
Die-cast zinc, nickel-plated |
| Material Electrical Contact |
Brass, Bronze |
| Material Insulating Sheath |
PE |
| Material Threaded Sleeve |
Die-cast zinc |
