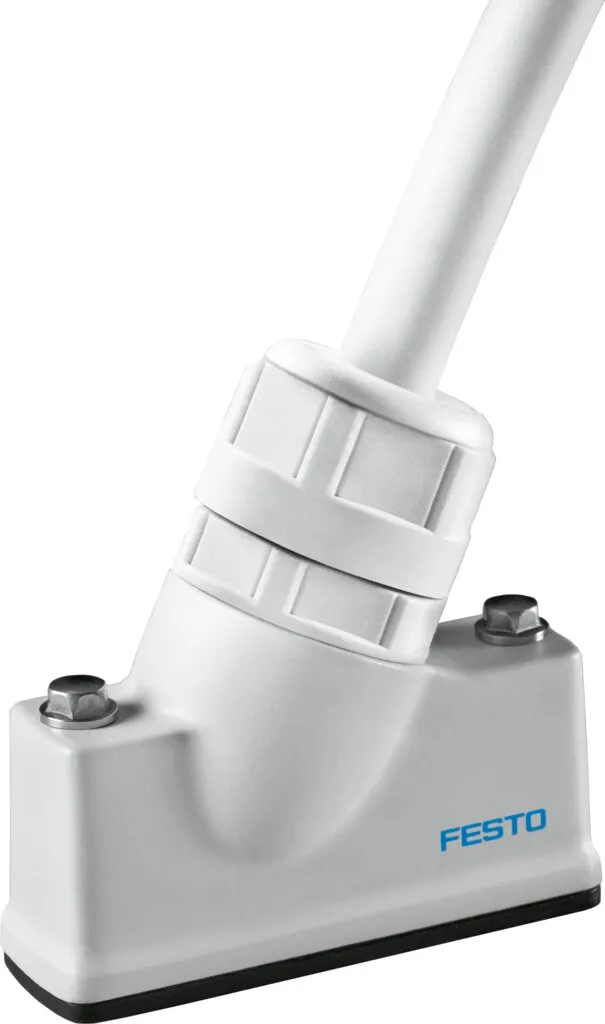

Festo NEBC-C-S1WA9HS-K-10-N-B-LE5-PT-S10
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Variants in easy-to-clean design , Standard variants, variants with shielding or as a hybrid cable , Variants suitable for energy chains , Variants with Ethernet, CANopen, I-Port or RS232
Specification
| Based On Standard |
DIN 47100 |
|---|---|
| Protocol |
I-Port |
| Cable Designation |
Without inscription label holder |
| Frequency Of Connection |
50 |
| Product Weight |
1120 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Angled |
| Electrical Connection 1, Connector System |
Sub-D |
| Electrical Connection 1, Number Of Connections/Cores |
9 |
| Electrical Connection 1, Used Connections/Cores |
5 |
| Electrical Connection 1, Type Of Mounting |
2x screw 4-40 UNC, With seal |
| Electrical Connection 1, Connection Pattern |
00995638 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
5 |
| Operational Voltage Range Dc |
30 V |
| Current Rating At 40° C |
5.2 A |
| Protective Conductor Connection |
Not available |
| Cable Length |
10 m |
| Cable Characteristic |
Standard |
| Bending Radius, Fixed Cable |
26 mm |
| Bending Radius, Moving Cable |
78 mm |
| Cable Diameter |
6.5 mm |
| Cable Diameter Tolerance |
± 0.1 mm |
| Cable Structure |
5 x 0.5 mm² |
| Nominal Cross Section Conductor |
0.5 mm² |
| Degree Of Protection |
IP65, IP67, IP69K |
| Note On Degree Of Protection |
In assembled state |
| Special Characteristics |
Easy to clean |
| Ambient Temperature |
-5, 60 °C |
| Ambient Temperature With Moving Cable |
-5, 60 °C |
| Storage Temperature |
-20, 40 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Note On The Contamination Level |
In mounted state |
| Corrosion Resistance Class Crc |
3 – high corrosion stress |
| Material Cable Sheath |
PVC |
| Cable Sheath Colour |
Grey |
| Material Housing |
PA-reinforced |
| Housing Colour |
grey |
| Material Screws |
Stainless steel |
| Material Seals |
EPDM |
| Material Electrical Contact |
Gold-plated bronze |
| Material Insulating Sheath |
PVC |
