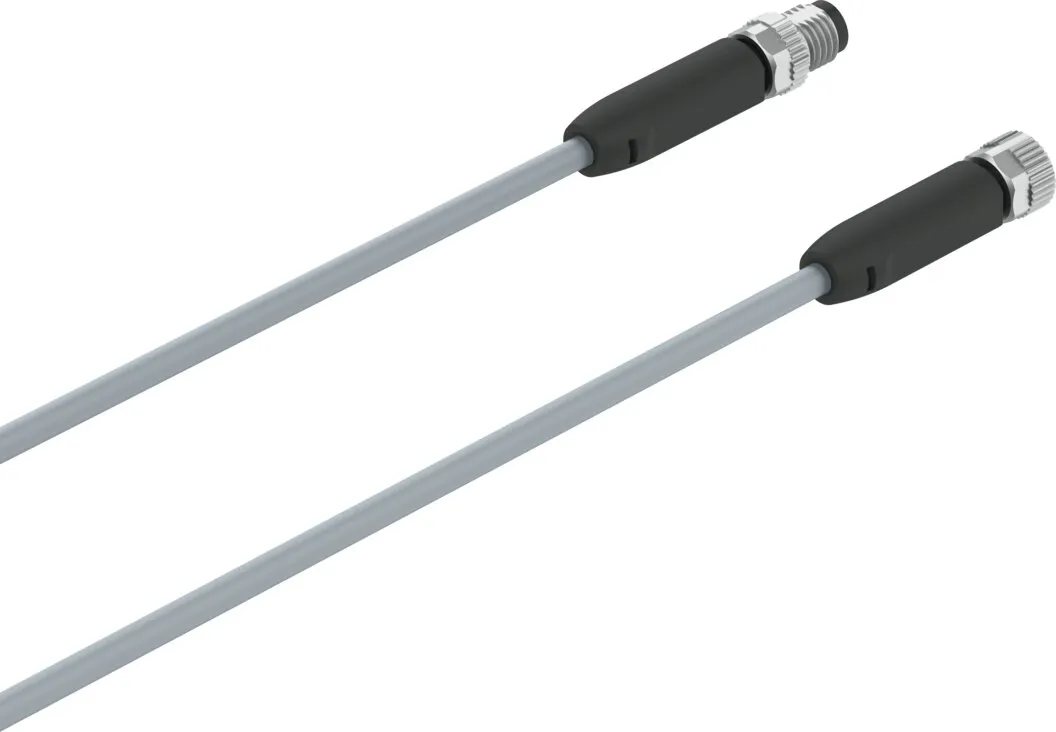

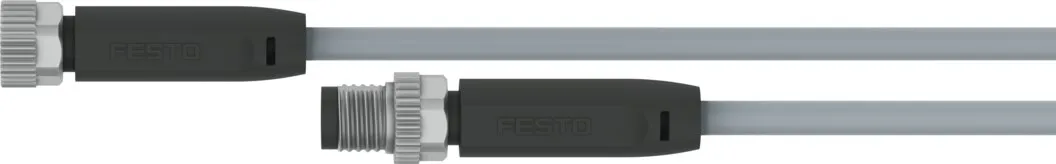

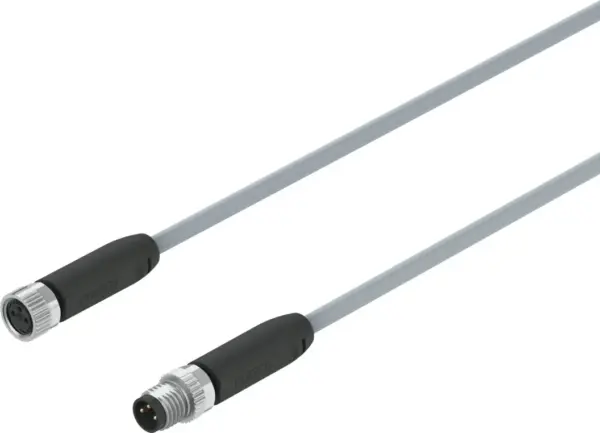

Festo NEBA-M8G3-U-5-N-M8G3
Powerful universal connecting cables , Suitable for harsh environments and applications in constant motion or vibration , Meets the safety requirements of IEC 61010-1 and IEC 61010-2-202 for electric…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Powerful universal connecting cables , Suitable for harsh environments and applications in constant motion or vibration , Meets the safety requirements of IEC 61010-1 and IEC 61010-2-202 for electrical equipment for measurement, control, and laboratory devices , High IP65, IP68, IP69k degree of protection , Resistant to abrasion and low adhesion , Suitable for use with energy chains and robots , Flame-retardant and self-extinguishing , Recommended for production systems for manufacturing lithium-ion batteries
Specification
| Conforms To Standard |
EN 61076-2-104, EN 61984 |
|---|---|
| Approval |
c UL us listed (OL) |
| Intended Use |
The connecting cable connects field devices (sensors, actuators) with controllers. |
| Explosion Protection |
Zone 2 (ATEX), Zone 22 (ATEX) |
| Certificate Issuing Authority |
UL E253748 |
| Cable Designation |
Without inscription label holder |
| Frequency Of Connection |
100 |
| Product Weight |
100 g |
| Instructions On Use |
Meets the requirements of IEC 61010-1 and 61010-2-202, in particular for electrically operated valves from Festo., Only energy-limited circuits with a maximum current of 4 A at a max. open circuit voltage of 30 V DC are permissible for supplying electrically actuated valves from Festo. |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M8x1, A-coded, to EN 61076-2-104 |
| Electrical Connection 1, Number Of Connections/Cores |
3 |
| Electrical Connection 1, Used Connections/Cores |
3 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock with hexagon A/F 9 mm and longitudinal knurl, Rotatable |
| Electrical Connection 1, Compatible Type Of Mounting |
Compatible with rotatable/non-rotatable screw-type lock |
| Electrical Connection 1, Connection Pattern |
00991871 |
| Electrical Connection 1, Terminal Allocation |
Pin 1 = BN, Pin 3 = BU, Pin 4 = BK |
| Electrical Connection 1, Display |
None |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Round |
| Electrical Connection 2, Connection Type |
Plugs |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
M8x1, A-coded to EN 61076-2-104 |
| Electrical Connection 2, Number Of Connections/Cores |
3 |
| Electrical Connection 2, Used Connections/Cores |
3 |
| Electrical Connection 2, Type Of Mounting |
Screw-type lock with hexagon A/F 9 mm and longitudinal knurl, Rotatable |
| Electrical Connection 2, Compatible Type Of Mounting |
Compatible with rotatable/non-rotatable screw-type lock |
| Electrical Connection 2, Connection Pattern |
00991155 |
| Electrical Connection 2, Terminal Allocation |
Pin 1 = BN, Pin 3 = BU, Pin 4 = BK |
| Electrical Connection 2, Display |
None |
| Operational Voltage Range Dc |
60 V |
| Note On Operational Voltage Range Dc |
0 – 30 V for UL applications, NEC/CEC CLASS 2 |
| Operational Voltage Range Ac |
48 V |
| Note On Operational Voltage Range Ac |
0 – 30 V for UL applications, NEC/CEC CLASS 2 |
| Current Rating At 40° C |
4 A |
| Note On Permissible Current Load At 40°C |
Observe derating |
| Immunity To Surge |
1.5 kV |
| Cable Length |
5 m |
| Cable Characteristic |
Suitable for energy chains/robot applications, Abrasion-resistant, Low adhesion, Flame-retardant and self-extinguishing |
| Test Conditions Cable |
Test conditions on request, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Flexural strength: >50000 cycles, bending radius 5 mm, Energy chain: > 5 million cycles, bending radius 28 mm |
| Notes On Test Conditions Cable |
Tested at 23 °C |
| Bending Radius, Fixed Cable |
12 mm |
| Bending Radius, Moving Cable |
39 mm |
| Cable Diameter |
3.8 mm |
| Cable Structure |
3 x 0.25 mm² |
| Nominal Cross Section Conductor |
0.25 mm² |
| Degree Of Protection |
IP65, IP68, IP69K |
| Note On Degree Of Protection |
In assembled state |
| Special Characteristics |
UV resistant, Hydrolysis-resistant, Resistant to cooling lubricants, Resistant to microbes, Oil resistant, Ozone-resistant |
| Outdoor Applications |
Application areas with direct exposure to outdoor climatic influences Class D1 based on IEC 60654-1 |
| Ambient Temperature |
-40, 85 °C |
| Note On Ambient Temperature |
-40 – 50 °C for UL applications |
| Ambient Temperature With Moving Cable |
-20, 85 °C |
| Note On The Ambient Temperature With Flexible Cable Installation |
-20 – 50 °C for UL applications |
| Storage Temperature |
-25, 55 °C |
| Note On Storage Temperature |
Temporarily during transport in packaging -40 … 85 °C |
| Relative Air Humidity |
Max. 93% at 40 °C |
| Nominal Altitude Of Use |
<= 2000 m NHN |
| Overvoltage Category |
II |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Suitability For The Production Of Li Ion Batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom Class |
Class 4 according to ISO 14644-1 |
| Note On Materials |
CFC-free, RoHS-compliant, Cadmium-free, Free of halogen, Free of phosphoric acid ester |
| Pollution Degree |
3 |
| Note On The Contamination Level |
In mounted state |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Grey |
| Material Housing |
TPE-U(PUR) |
| Housing Colour |
Black |
| Material Screw Type Lock |
Die-cast zinc, nickel-plated |
| Material Seals |
FPM |
| Material Electrical Contact |
Gold-plated copper alloy |
| Material Insulating Sheath |
PP |
