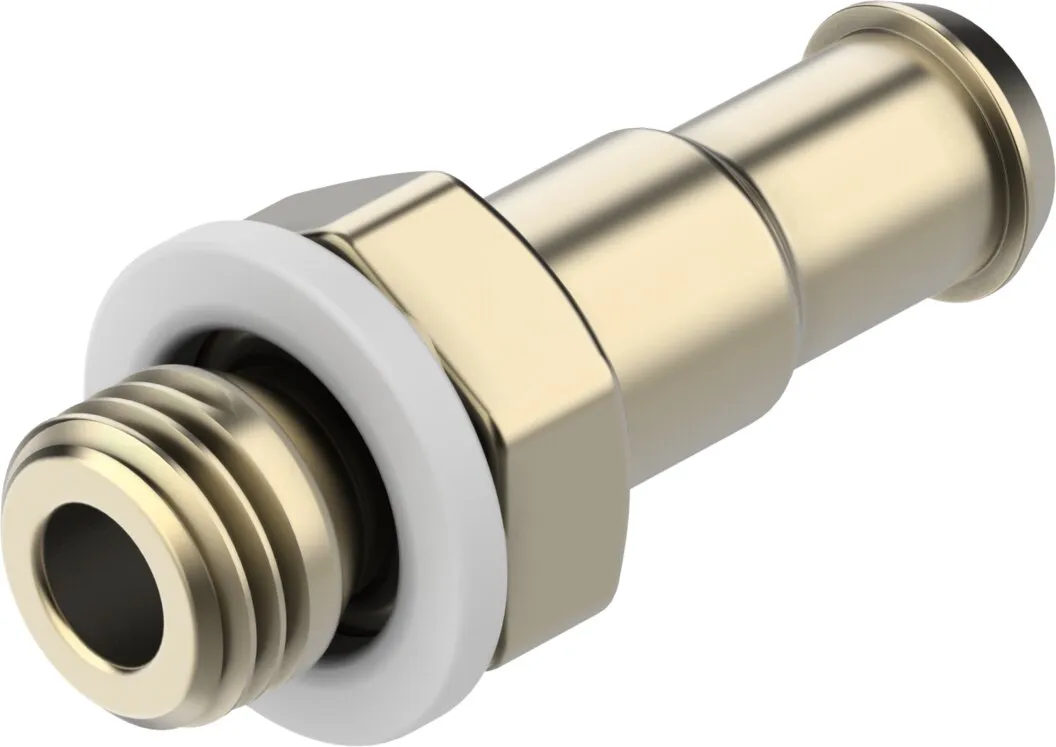

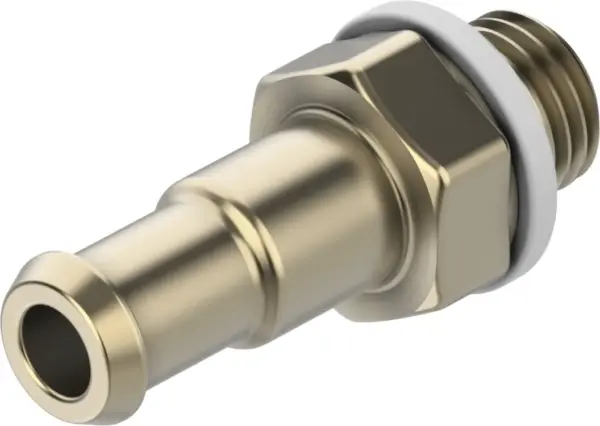

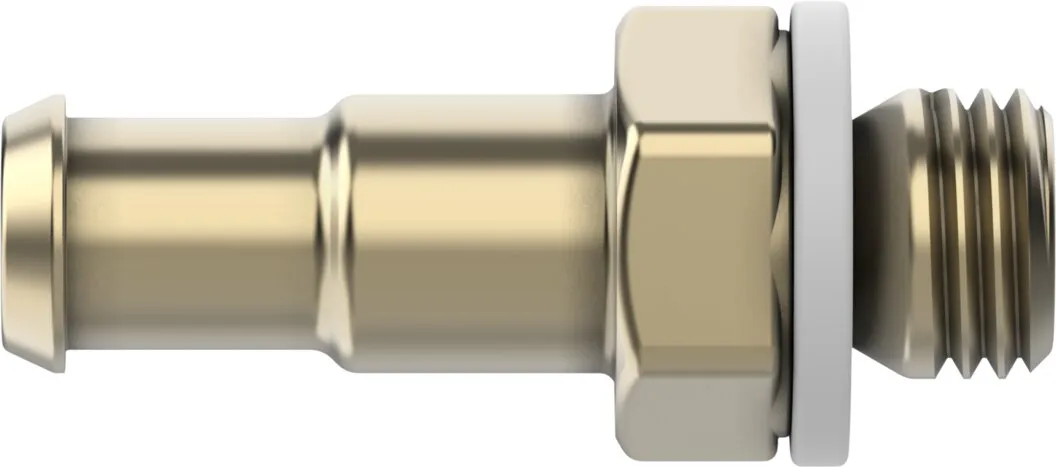

Festo N-M5-PK-4
Operating medium: compressed air, vacuum , Brass, POM, aluminium or stainless steel , Straight shape, T-shape, L-shape, Y-shape
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Operating medium: compressed air, vacuum , Brass, POM, aluminium or stainless steel , Straight shape, T-shape, L-shape, Y-shape
Specification
| Nominal Size |
2.5 mm |
|---|---|
| Type Of Seal On Screwed Plug |
Sealing ring |
| Mounting Position |
optional |
| Design |
Straight design |
| Size Of Pack |
10 |
| Operating Pressure Complete Temperature Range |
-0.95, 10 bar |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-10, 60 °C |
| Product Weight |
2 g |
| Pneumatic Connection, Port 1 |
Male thread M5 |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 6 mm |
| Material Housing |
Brass |
