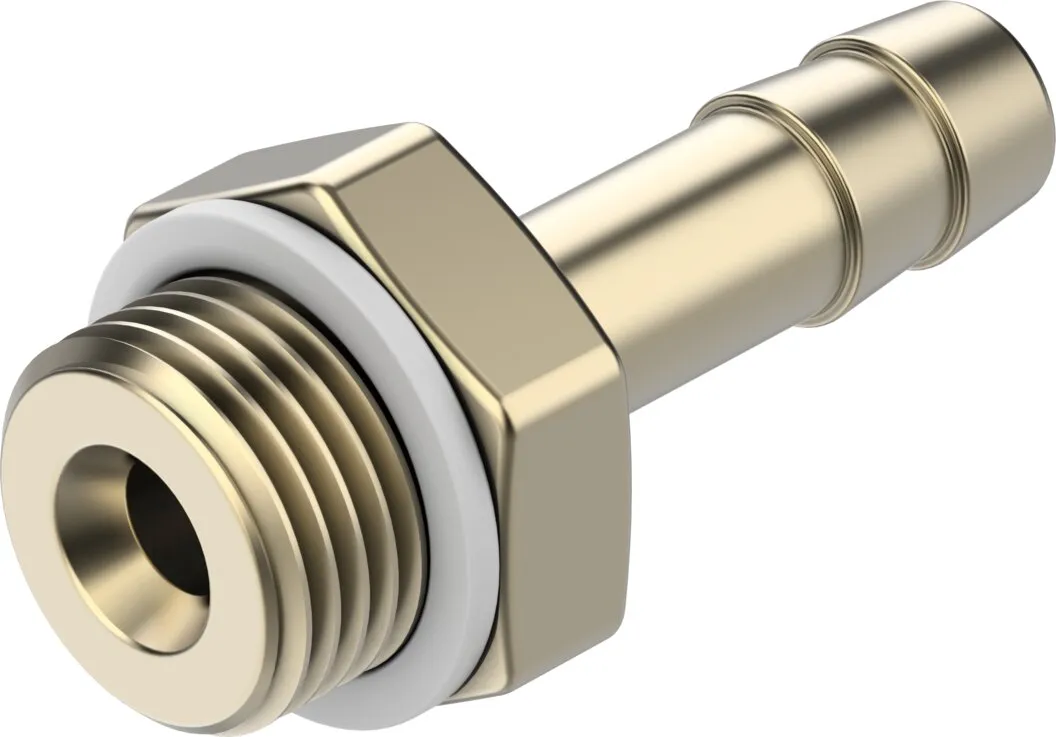

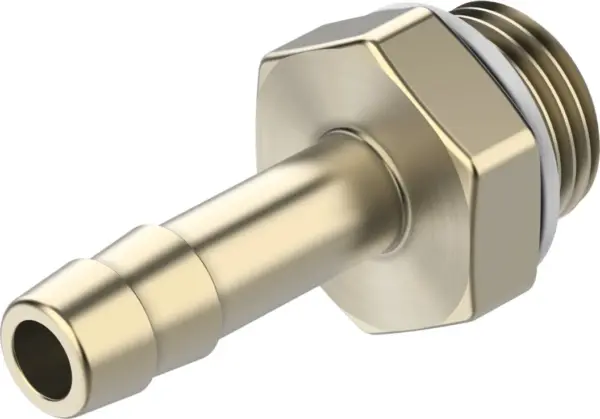

Festo N-3/8-P-13
Barbed hose fitting with or without sealing ring , Tubing clip to DIN 3017 , Operating medium: compressed air, vacuum , Brass or aluminium, steel
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Barbed hose fitting with or without sealing ring , Tubing clip to DIN 3017 , Operating medium: compressed air, vacuum , Brass or aluminium, steel
Specification
| Nominal Size |
11 mm |
|---|---|
| Type Of Seal On Screwed Plug |
Sealing ring |
| Mounting Position |
optional |
| Design |
Straight design |
| Size Of Pack |
1 |
| Operating Pressure Complete Temperature Range |
-0.95, 16 bar |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-10, 60 °C |
| Max. Tightening Torque |
15 Nm |
| Product Weight |
178 g |
| Pneumatic Connection, Port 1 |
Male thread G3/8 |
| Pneumatic Connection, Port 2 |
For tubing inside diameter of 13 mm |
| Note On Materials |
RoHS-compliant |
| Material Housing |
Anodised aluminium |
