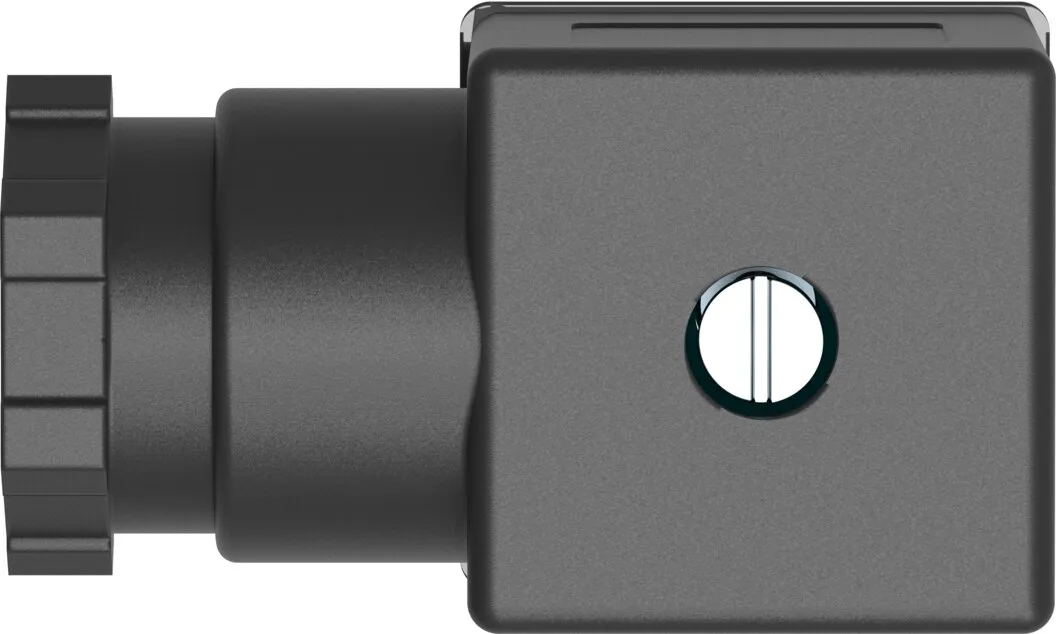

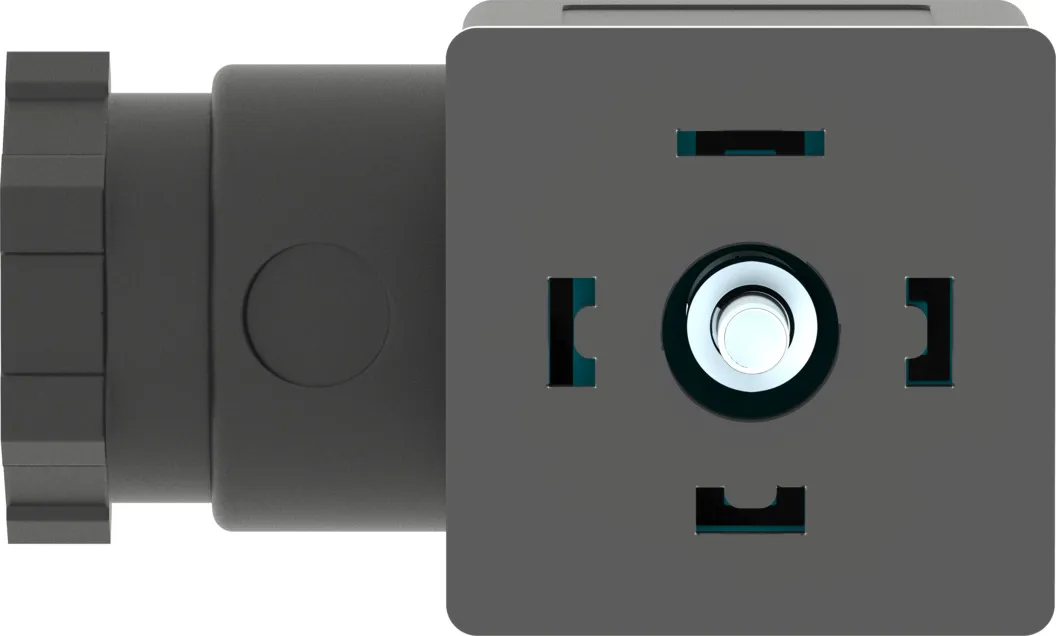

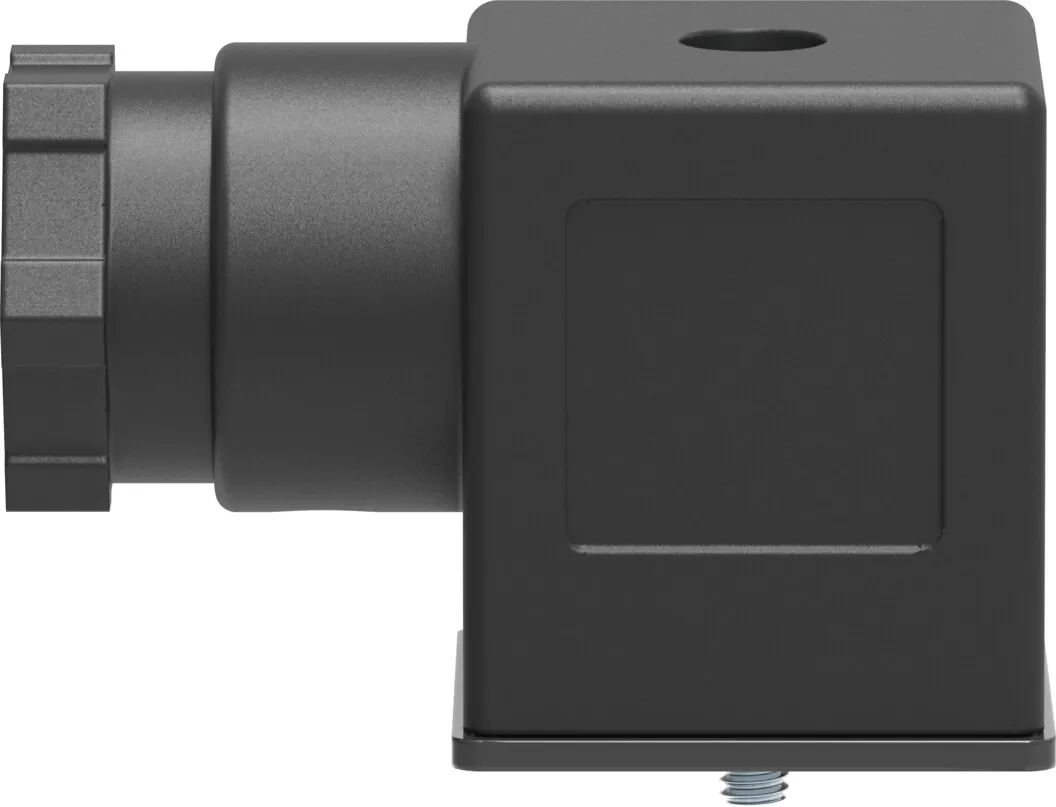

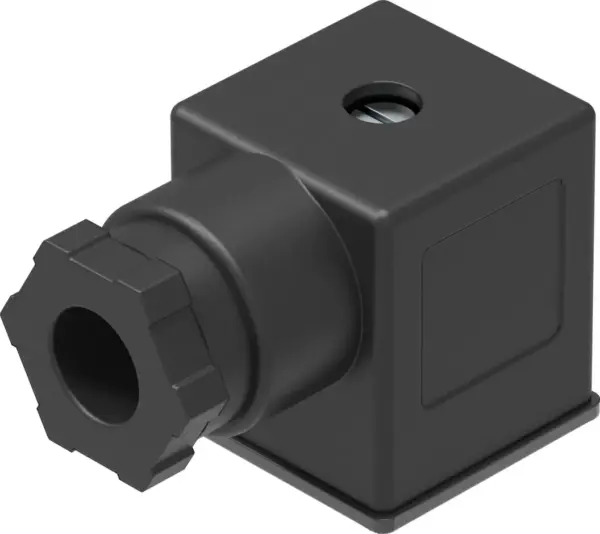

Festo MSSD-N
For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils , For connecting individual valves , Available with LED display
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils , For connecting individual valves , Available with LED display
Specification
| Based On Standard | ENÂ 175301-803 |
|---|---|
| Cable Outlet | Angled |
| Product Weight | 30 g |
| Electrical Connection 1, Design | Angular |
| Electrical Connection 1, Connection Type | Socket |
| Electrical Connection 1, Connector System | Plug pattern type A to EN 175301-803 |
| Electrical Connection 1, Number Of Connections/Cores | 3 |
| Electrical Connection 1, Type Of Mounting | On solenoid valve via M3 central screw |
| Electrical Connection 1, Connection Pattern | 00995648 |
| Electrical Connection 2, Connector System | Screw terminal |
| Operational Voltage Range Dc | 24 V |
| Operational Voltage Range Ac | 250 V |
| Current Rating At 40° C | 16 A |
| Cable Fitting | M20x1.5 |
| Cable Diameter | 8, 10 mm |
| Nominal Cross Section Conductor | 1.5 mm² |
| Degree Of Protection | IP65 |
| Note On Degree Of Protection | In assembled state |
| Ambient Temperature | -25, 80 °C |
| Labs (Pwis) Conformity | VDMA24364 zone III |
| Note On Materials | RoHS-compliant |
| Material Housing | PA-reinforced |
| Housing Colour | Black |
| Material Screws | Steel |
| Material Seals | VMQ |
