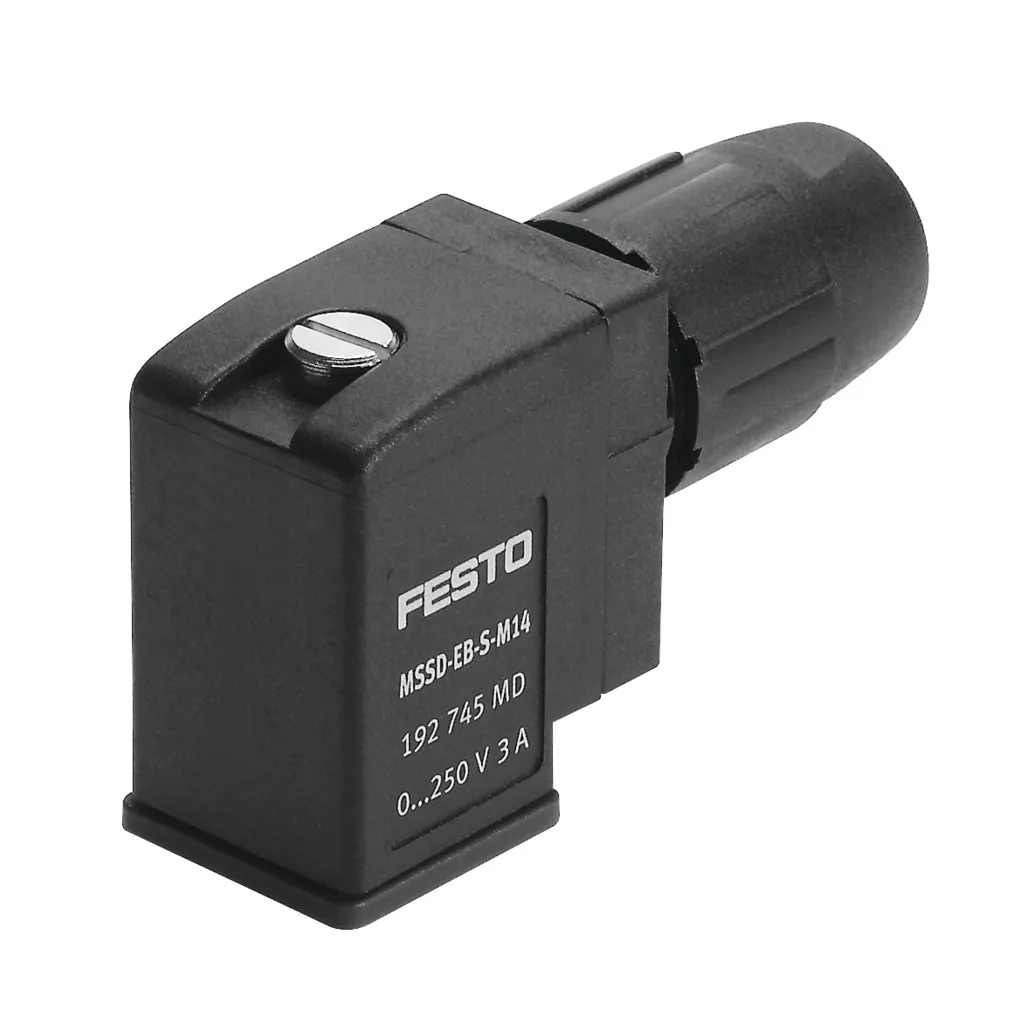

Festo MSSD-EB-S-M14
For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils , For connecting individual valves , Available with LED display
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils , For connecting individual valves , Available with LED display
Specification
| Frequency Of Connection | 10 |
|---|---|
| Type Of Mounting | On solenoid valve via M2.5 central screw |
| Mounting Position | optional |
| Product Weight | 17 g |
| Electrical Connection | 4-pin, Socket, Type C |
| Cable Diameter | 4, 6 mm |
| Nominal Cross Section Conductor | 0.25, 0.5 mm² |
| Degree Of Protection | IP67, To IEC 60529 |
| Ambient Temperature | -25, 90 °C |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Material Housing | PA |
| Housing Colour | Black |
