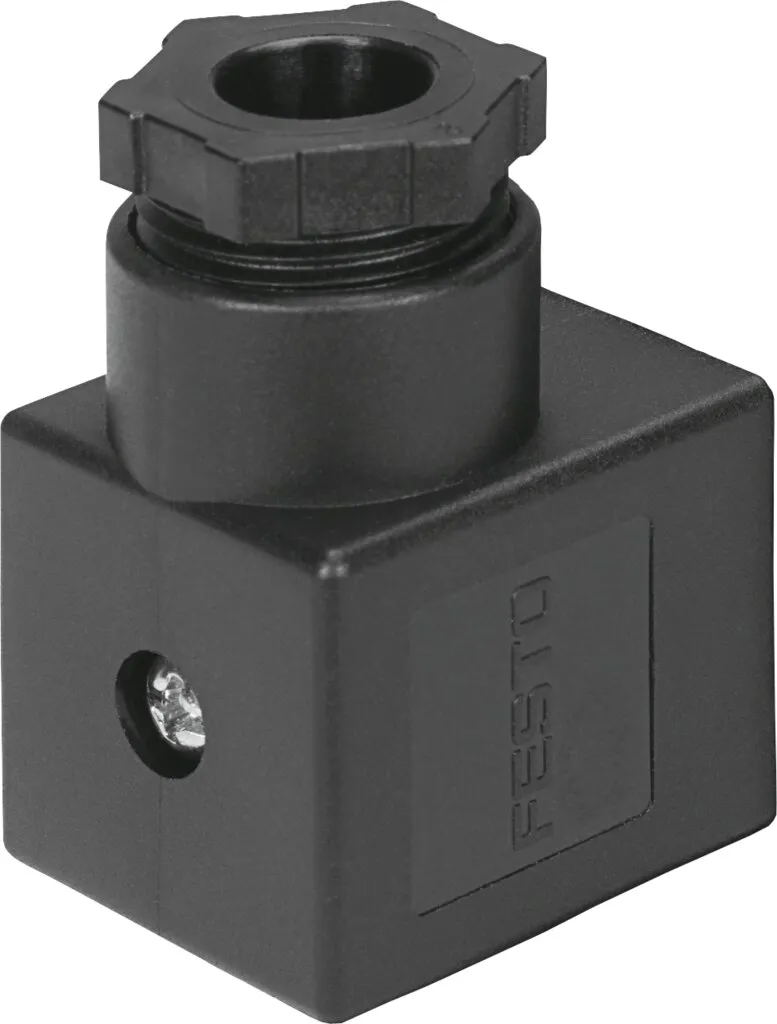

Festo MSSD-C-M16
For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils , For connecting individual valves , Available with LED display
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For valves with F, D, N1, V, E, EB, N2, Y, Z, ZB, ZC, MD-2 and MH-2 solenoid coils , For connecting individual valves , Available with LED display
Specification
| Frequency Of Connection |
50 |
|---|---|
| Type Of Mounting |
On solenoid valve via M3 central screw |
| Mounting Position |
optional |
| Product Weight |
38 g |
| Electrical Connection |
3-pin, Angled socket, Type A, To DIN EN 175301-803, Square design |
| Cable Fitting |
M16 |
| Permissible Cable Diameter |
6, 8 mm |
| Connection Cross Section |
1.5 mm² |
| Degree Of Protection |
IP65, To IEC 60529 |
| Ambient Temperature |
-20, 115 °C |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PA-reinforced |
| Material Seals |
HNBR |
