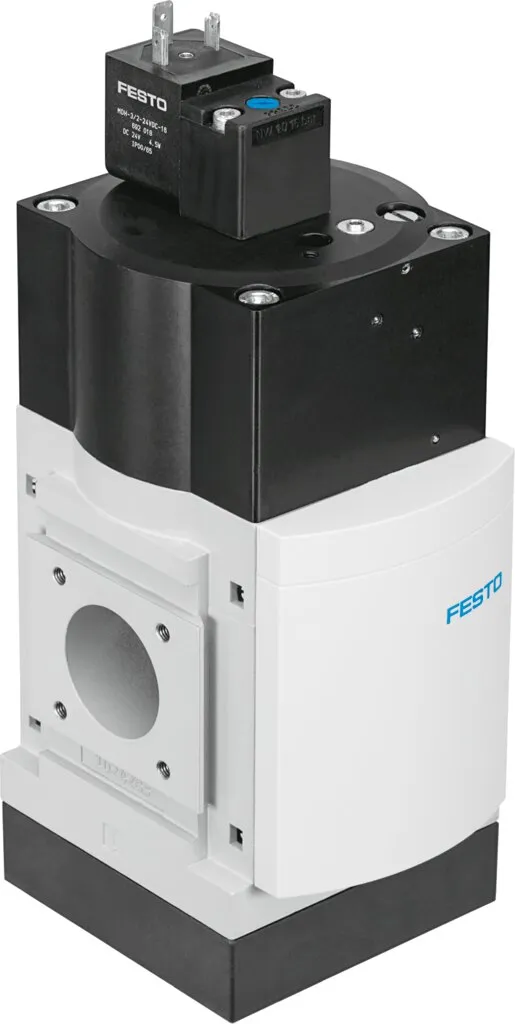

Festo MS9-SV
Grid dimension 90 mm , With safety functions , For reducing pressure quickly and reliably and for building up pressure gradually , Adjustable pressure build-up time , Adjustable switch-through pressur…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 90 mm , With safety functions , For reducing pressure quickly and reliably and for building up pressure gradually , Adjustable pressure build-up time , Adjustable switch-through pressure , Supply voltage 24 V DC
Specification
| Series |
MS |
|---|---|
| Size |
9 |
| Grid Dimension |
90 mm |
| Safety Function |
Exhaust |
| Performance Level (Pl) |
Exhausting/up to category 1, performance level c |
| Design |
Piston gate valve |
| Type Of Actuation |
Electric |
| Sealing Principle |
Soft |
| Exhaust Air Function |
Without flow control option |
| Manual Override |
None, On pilot solenoid valves: non-detenting; on soft-start/quick exhaust valve: detenting, self-resetting |
| Type Of Reset |
Mechanical spring |
| Type Of Piloting |
Pilot actuated |

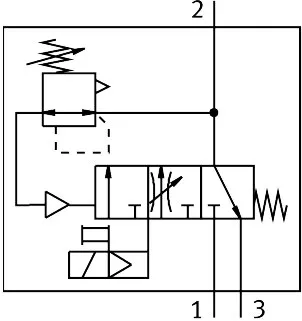

| Symbol |
00995240 |
| Valve Function |
Soft-start function |
| Operating Pressure |
3.5, 16 bar |
| Pressure Gauge (Analog) Or Pressure Display (Digital) |
Prepared for G1/4, Prepared for G1/8, Red/green scale, Via pressure sensor, With pressure gauge, Via operational status indicator |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
8300, 16550 l/min |
| Duty Cycle |
100% |
| Characteristic Coil Data |
230 V AC: 50/60 Hz, pick-up power 14.5 VA, holding power 10.5 VA, 24 V DC: 2.7 W, 24 V DC: 8.4 W |
| Nominal Operating Voltage Dc |
230 V |
| Permissible Voltage Fluctuations |
+/- 10 % |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Note On Materials |
RoHS-compliant |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Degree Of Protection |
IP65 |
| Media Temperature |
60 °C |
| Ambient Temperature |
60 °C |
| Storage Temperature |
60 °C |
| Shock Resistance |
Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance |
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Approval |
c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, To EC Machinery Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK regulations for machines, To UK RoHS instructions |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
optional |
| Pressure Gauge Connection |
G1/8, G1/4 |
| Electrical Connection |
Type A, Plugs, To EN 175301-803, Square design |
| Material Housing |
Die-cast aluminium |
| Material Seals |
NBR |
| Material Piston Slide |
Brass |
| Material Cover |
Wrought aluminium alloy |
| Material Underneath Cover |
PA |
