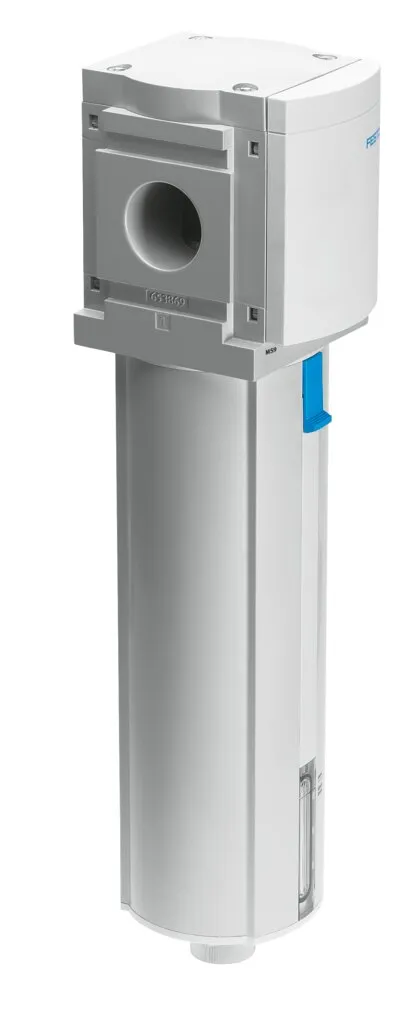

Festo MS9-LFM-1-AUV-HF
Grid dimension 90 mm , High-efficiency filter for exceptionally clean compressed air , Removing oil aerosols from compressed air , Optionally with differential pressure indicator for indication of con…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 90 mm , High-efficiency filter for exceptionally clean compressed air , Removing oil aerosols from compressed air , Optionally with differential pressure indicator for indication of contamination , Available with electronic filter contamination indicator
Specification
| Series |
MS |
|---|---|
| Size |
9 |
| Design |
Fibre filter |
| Grade Of Filtration |
0.01 µm |
| Condensate Drain |
Fully automatic, Manual, non-detenting |
| Symbol |
00991520 |
| Operating Pressure |
2, 12 bar |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [6:-:4] |
| Air Purity Class At Output |
Compressed air to ISO 8573-1:2010 [3:-:2] |
| Max. Standard Flow Rate For Clean Air Class |
7800 l/min |
| Min. Standard Flow Rate For Clean Air Class |
390 l/min |
| Filter Efficiency |
99.9999 % |
| Max. Condensate Volume |
225 ml |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Media Temperature |
5, 60 °C |
| Ambient Temperature |
5, 60 °C |
| Storage Temperature |
-10, 60 °C |
| Filter Efficiency, Fine Particles |
99.995 % |
| M P P S |
0.1 µm |
| Filter Efficiency Mpps |
99.968 % |
| Residual Oil Content |
0.01 mg/m³ |
| Filter Efficiency, Oil Aerosol |
99 % |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
Vertical +/-5° |
| Pneumatic Connection, Port 1 |
G1 |
| Pneumatic Connection, Port 2 |
G1 |
| Material Housing |
Die-cast aluminium |
| Material Covering |
PA |
| Material Filter |
Borosilicate fibre |
| Material Bowl |
Wrought aluminium alloy |
| Material Screen |
PA |
| Material Seals |
NBR |
| Product Weight |
2500 g |
