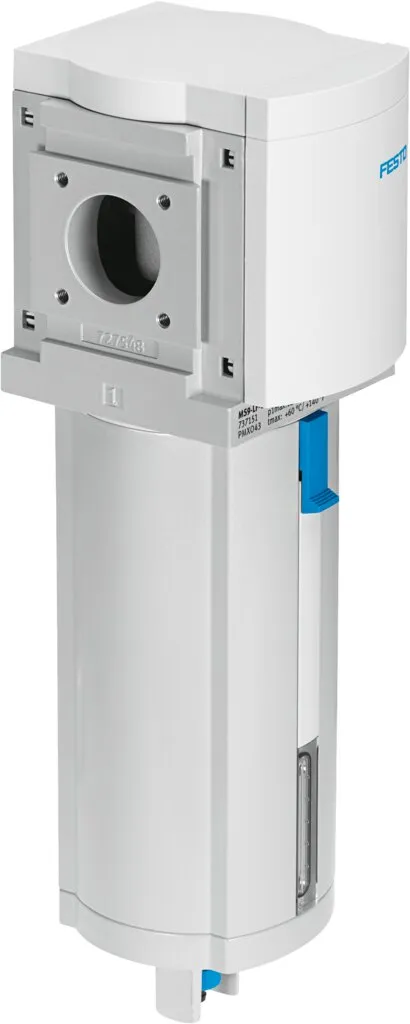

Festo MS9-LF-G-CUM
Grid dimension 90 mm , Good particle and condensate separation , High flow rate performance with minimal pressure drop , Available with manual, semi-automatic, fully automatic or fully automatic, elec…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 90 mm , Good particle and condensate separation , High flow rate performance with minimal pressure drop , Available with manual, semi-automatic, fully automatic or fully automatic, electrically actuated condensate drain
Specification
| Size |
9 |
|---|---|
| Series |
MS |
| Mounting Position |
Vertical +/-5° |
| Grade Of Filtration |
5 µm |
| Condensate Drain |
Manually rotating |
| Design |
Sintered filter with centrifugal separator |
| Degree Of Condensate Separation |
75 % |
| Symbol |
00991519 |
| Operating Pressure |
20 bar |
| Operating Medium |
Inert gases |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-10, 60 °C |
| Air Purity Class At Output |
Compressed air to ISO 8573-1:2010 [6:8:4] |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Pore Size |
5 µm |
| Product Weight |
2000 g |
| Type Of Mounting |
In-line installation, With accessories |
| Material Covering |
PA-reinforced |
| Material Spin Disc |
POM |
| Material Filter Carrier |
POM |
| Note On Materials |
RoHS-compliant |
| Material Sub Base |
Die-cast aluminium |
| Material Mounting Bracket |
Die-cast aluminium |
| Material Filter |
PE |
| Material Housing |
Die-cast aluminium |
| Material Module Connector |
Die-cast aluminium |
| Material Bowl |
Wrought aluminium alloy |
| Material Cup Seal |
NBR |
| Material Screen |
PA |
| Material Separating Plate |
POM |
