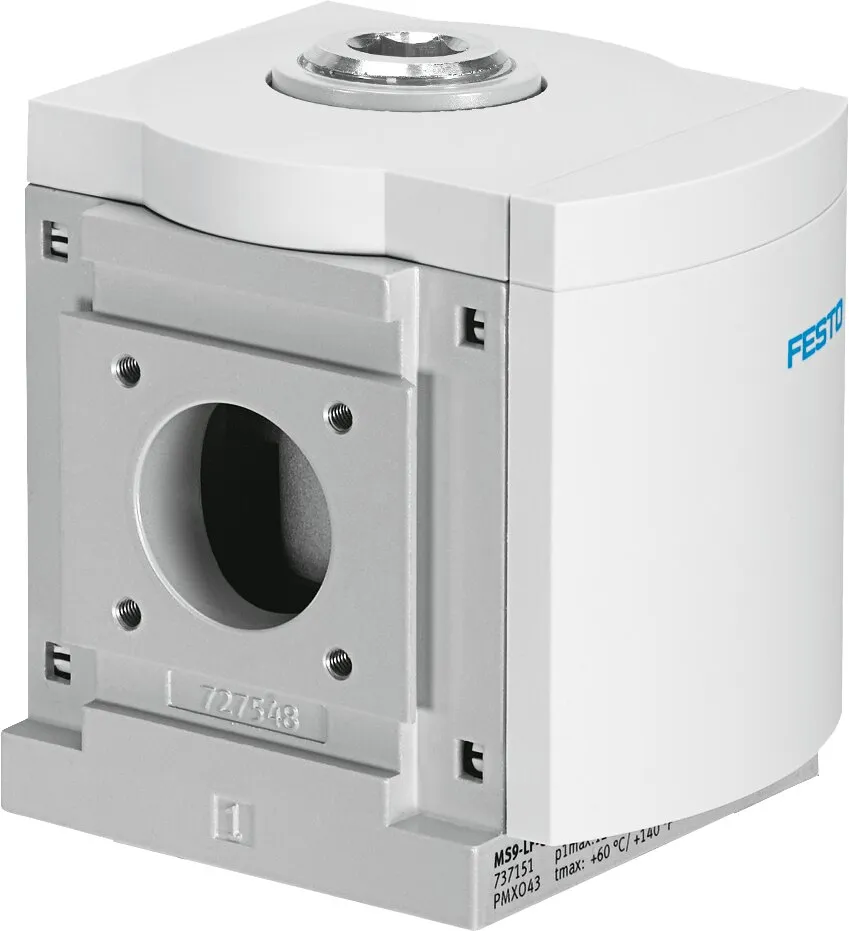

Festo MS9-FRM-G-VS
Grid dimension 90 mm , Optionally with integrated non-return function and pressure switch , Outlet at top and bottom , Can be used as an intermediate distributor for varying air qualities , Optionally…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 90 mm , Optionally with integrated non-return function and pressure switch , Outlet at top and bottom , Can be used as an intermediate distributor for varying air qualities , Optionally with pressure sensor
Specification
| Size | 9 |
|---|---|
| Series | MS |
| Mounting Position | optional |
| Design | Branching module |
| Symbol | 00991510 |
| Operating Pressure | 20 bar |
| Operational Voltage Range Ac | 250 V |
| Operational Voltage Range Dc | 125 V |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation possible |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Storage Temperature | -10, 60 °C |
| Media Temperature | -10, 60 °C |
| Ambient Temperature | -10, 60 °C |
| Product Weight | 1000 g |
| Type Of Mounting | Front panel mounting, In-line installation, With accessories |
| Pneumatic Connection, Port 3 | G1 |
| Pneumatic Connection, Port 4 | G1 |
| Material Covering | PA-reinforced |
| Note On Materials | RoHS-compliant |
| Material Sub Base | Die-cast aluminium |
| Material Mounting Bracket | Die-cast aluminium |
| Material Housing | Die-cast aluminium |
| Material Module Connector | Die-cast aluminium |
