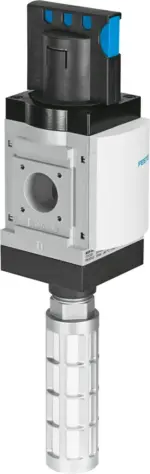

Festo MS9-EM-NG-S-VS
Grid dimension 90 mm , Manual 3/2-way valve for pressurising and exhausting pneumatic systems , A silencer can be attached or the exhaust air ducted at port 3 , Switching position is immediately recog…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 90 mm , Manual 3/2-way valve for pressurising and exhausting pneumatic systems , A silencer can be attached or the exhaust air ducted at port 3 , Switching position is immediately recognisable , Optionally with pressure gauge and pressure sensor
Specification
| Series | MS |
|---|---|
| Size | 9 |
| Grid Dimension | 90 mm |
| Design | Piston gate valve |
| Type Of Actuation | Manual |
| Sealing Principle | Soft |
| Exhaust Air Function | Without flow control option |
| Actuator Lock | Rotary knob with detent |
| Type Of Reset | Forced |
| Type Of Piloting | Direct |
| Symbol | 00991670 |
| Valve Function | 3/2 bistable |
| Operating Pressure | 20 bar |
| Lap | Overlap |
| Standard Nominal Flow Rate (Standardised To Din 1343) | 18000 l/min |
| Standard Nominal Flow Rate 2 3 | 14100 l/min |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Note On Materials | RoHS-compliant |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Media Temperature | -10, 60 °C |
| Sound Pressure Level | 93 dB(A) |
| Ambient Temperature | -10, 60 °C |
| Type Of Mounting | In-line installation, With accessories |
| Mounting Position | optional |
| Product Weight | 2400 g |
| Pneumatic Connection, Port 3 | G1 |
| Material Piston Slide | POM |
| Material Seals | NBR |
| Material Housing | Die-cast aluminium |
