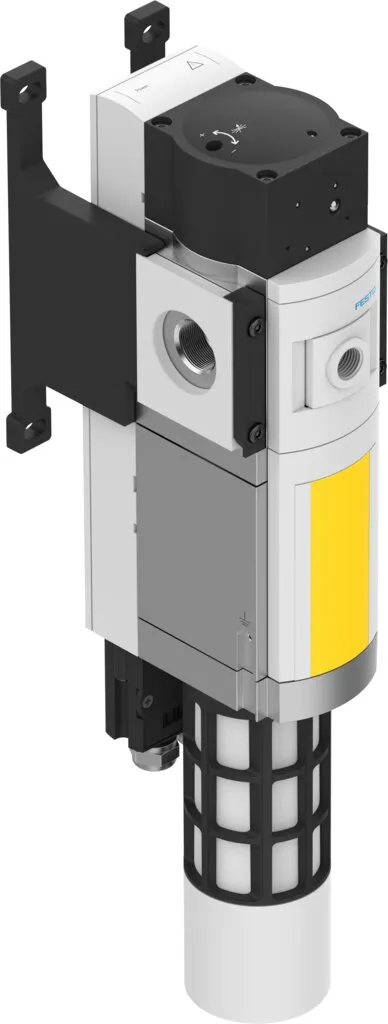

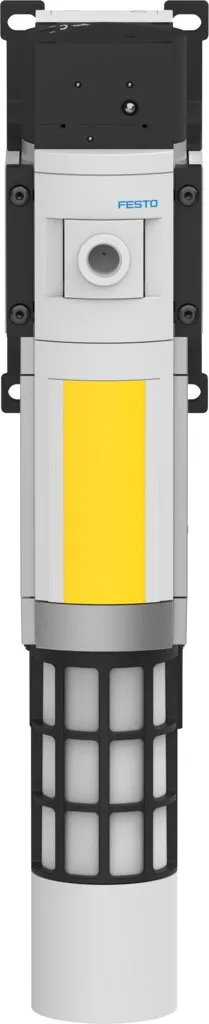

Festo MS6-SV-1/2-E-10V24-SO-A4-MP1-WPB-UL1
Grid dimension 62 mm , With safety functions , For reducing pressure quickly and reliably and for building up pressure gradually , Adjustable pressure build-up time , Adjustable switch-through pressur…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , With safety functions , For reducing pressure quickly and reliably and for building up pressure gradually , Adjustable pressure build-up time , Adjustable switch-through pressure , Supply voltage 24 V DC
Specification
| Series |
MS |
|---|---|
| Size |
6 |
| Grid Dimension |
62 mm |
| Safety Function |
Exhaust, Prevention of unexpected start-up (pressurisation) |
| Safety Integrity Level (Sil) |
Exhaust/SIL 3, Prevention of unexpected start-up (pressurisation)/SIL 3 |
| Performance Level (Pl) |
Exhausting/up to category 4, performance level e, Prevention of unexpected start-up (pressurisation)/up to category 4, performance level e |
| Note On Forced Dynamization |
Switching frequency min. 1/month |
| Design |
Piston seat |
| Lap |
Underlap |
| Type Of Actuation |
Electric |
| Pilot Air Supply |
Internal |
| Sealing Principle |
Soft |
| Exhaust Air Function |
Without flow control option |
| Position Detection Principle |
Magnetic piston principle |
| Conforms To Standard |
DIN EN ISO 13849-1 |
| Manual Override |
None |
| Type Of Reset |
Mechanical spring |
| Type Of Piloting |
Pilot actuated |
| Symbol |
00995704 |
| Valve Function |
Soft-start function |
| Operating Pressure |
3.5, 10 bar |
| Pressure Gauge (Analog) Or Pressure Display (Digital) |
Prepared for G1/4 |
| C Value |
19.3 l/sbar |
| B Value |
0.21 |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
4300 l/min |
| Standard Nominal Flow Rate, Exhaust 0.6 >0 Mpa (6 >0 Bar, 87 >0 Psi) |
9000 l/min |
| Max. Switching Frequency |
0.5 Hz |
| Switching Time Off |
40 ms |
| Switching Time On |
130 ms |
| Duty Cycle |
100% |
| Signal Status Display |
LED, Floating contact |
| Nominal Operating Voltage Dc |
24 V |
| Permissible Voltage Fluctuations |
+/- 10 % |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Note On Materials |
RoHS-compliant |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Sound Pressure Level |
75 dB(A) |
| Degree Of Protection |
IP65, With plug socket |
| Media Temperature |
-10, 50 °C |
| Ambient Temperature |
-10, 50 °C |
| Storage Temperature |
-10, 50 °C |
| Shock Resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Approval |
c UL us – Recognized (OL) |
| Kc Mark |
KC-EMV |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, To EC Machinery Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK regulations for machines, To UK RoHS instructions |
| Certificate Issuing Authority |
IFA 1001180, Intertek UK-MCR-0086 |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
optional |
| Product Weight |
2210 g |
| Pressure Gauge Connection |
G1/4 |
| Pneumatic Connection, Port 1 |
G1/2 |
| Pneumatic Connection, Port 2 |
G1/2 |
| Pneumatic Connection, Port 3 |
G1 |
| Electrical Connection |
9-pin, Sub-D |
| Material Housing |
Die-cast aluminium |
| Material Seals |
NBR |
| Material Piston Rod |
High-alloy stainless steel |
